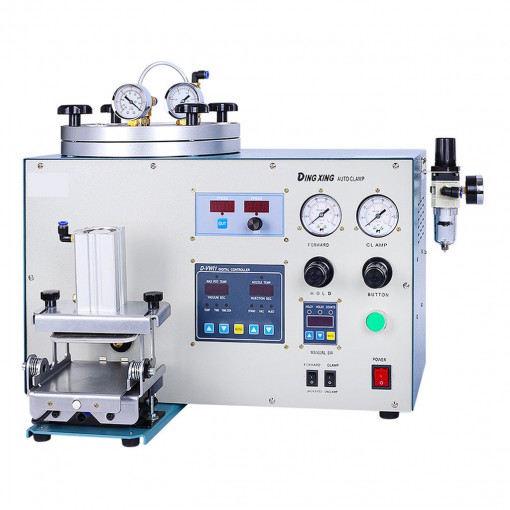

3kg 510W Automatic Digital Jewelry Vacuum Wax Injection Machine

3kg 510W Automatic Digital Jewelry Vacuum Wax Injection Machine


Features:
Automatic clamping and wax injection;
Digital display for temperature, time, and pressure control;
Vacuum technology during wax injection;
Adjustable wax injection pressure with pressure gauge display;
Temperature control with ±0.2°C accuracy;
Compatible with gold, platinum, K gold, silver, stainless steel jewelry;

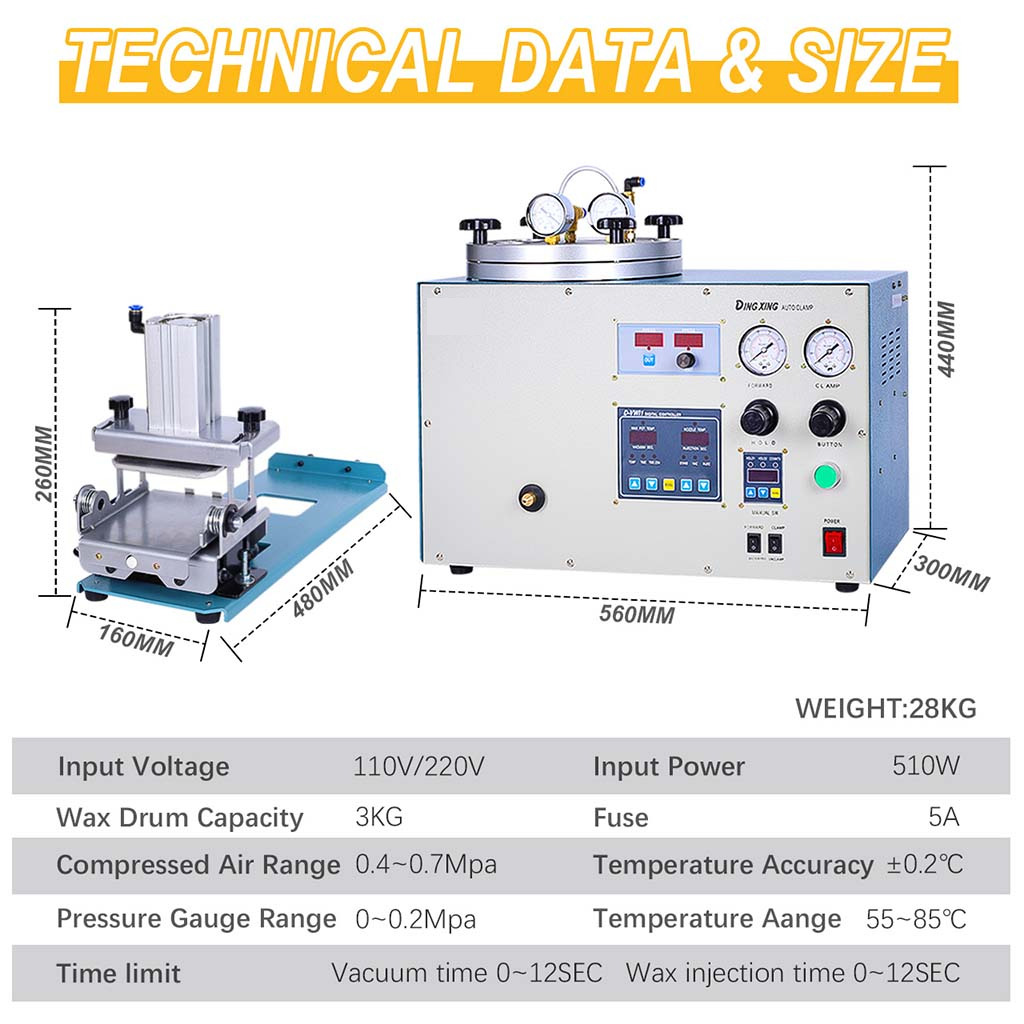

Specification:
Voltage: 110V/220V, 50Hz/60Hz
Power: 510W
Wax drum capacity: 3KG
Fuse: 5A
Temperature range (wax pot): 0–100°C
Temperature range (valve): 0–100°C
Compressed air range: 0.4–0.7Mpa
Pressure gauge range: 0–0.2Mpa
Temperature range for operation: 55–85°C
Temperature accuracy: ±0.2°C
Vacuum time setting: 0–12 seconds
Wax injection time setting: 0–12 seconds
Weight: approx. 28KG

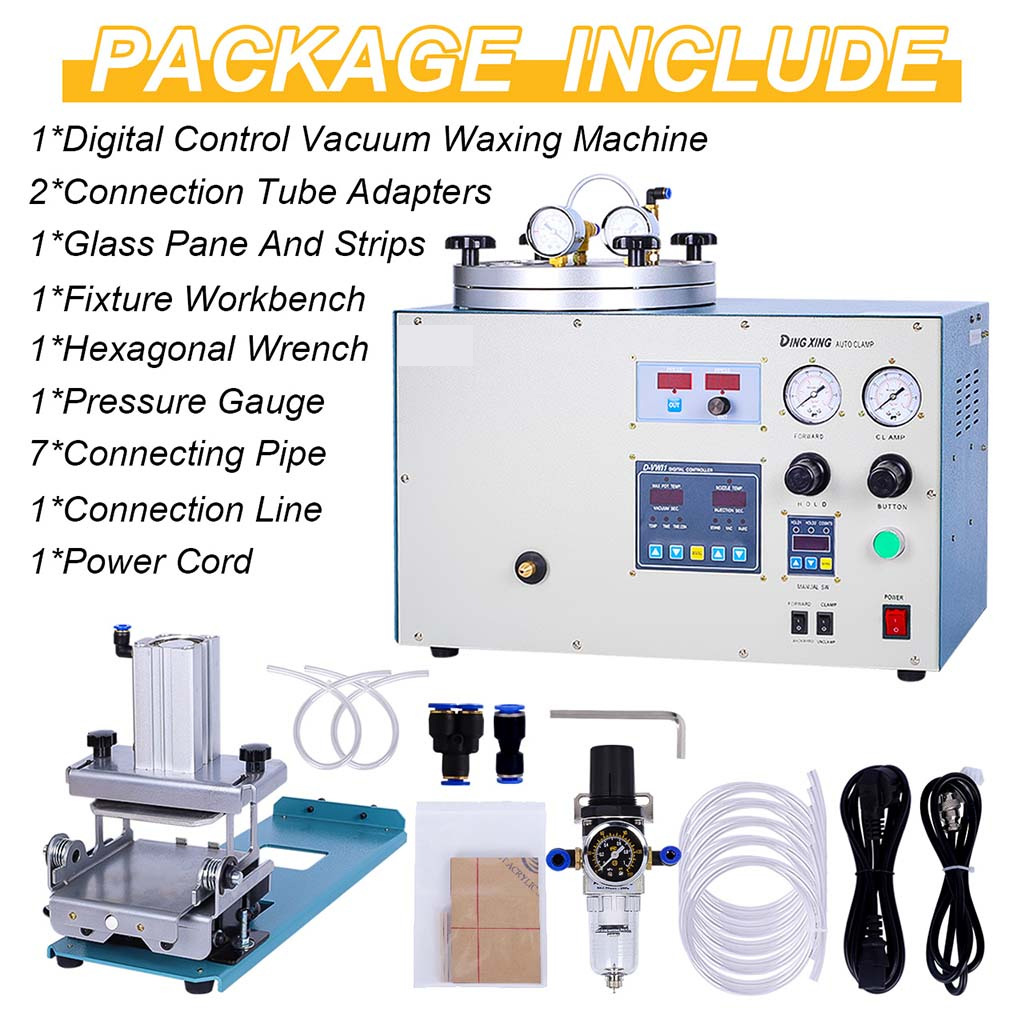

Packing List
1 × Automatic digital wax injection machine
2 × 8-6 connection tube adapters
1 × Glass pane and strips
1 × Fixture workbench
1 × Hexagonal wrench
1 × Pressure gauge
7 × Connecting pipes
1 × Fixture workbench connection line
1 × Power cord
