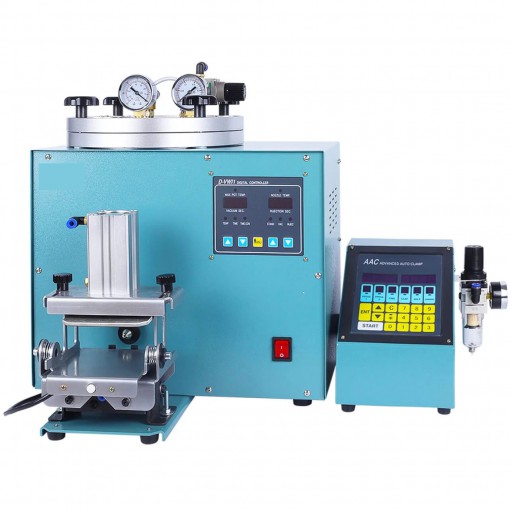

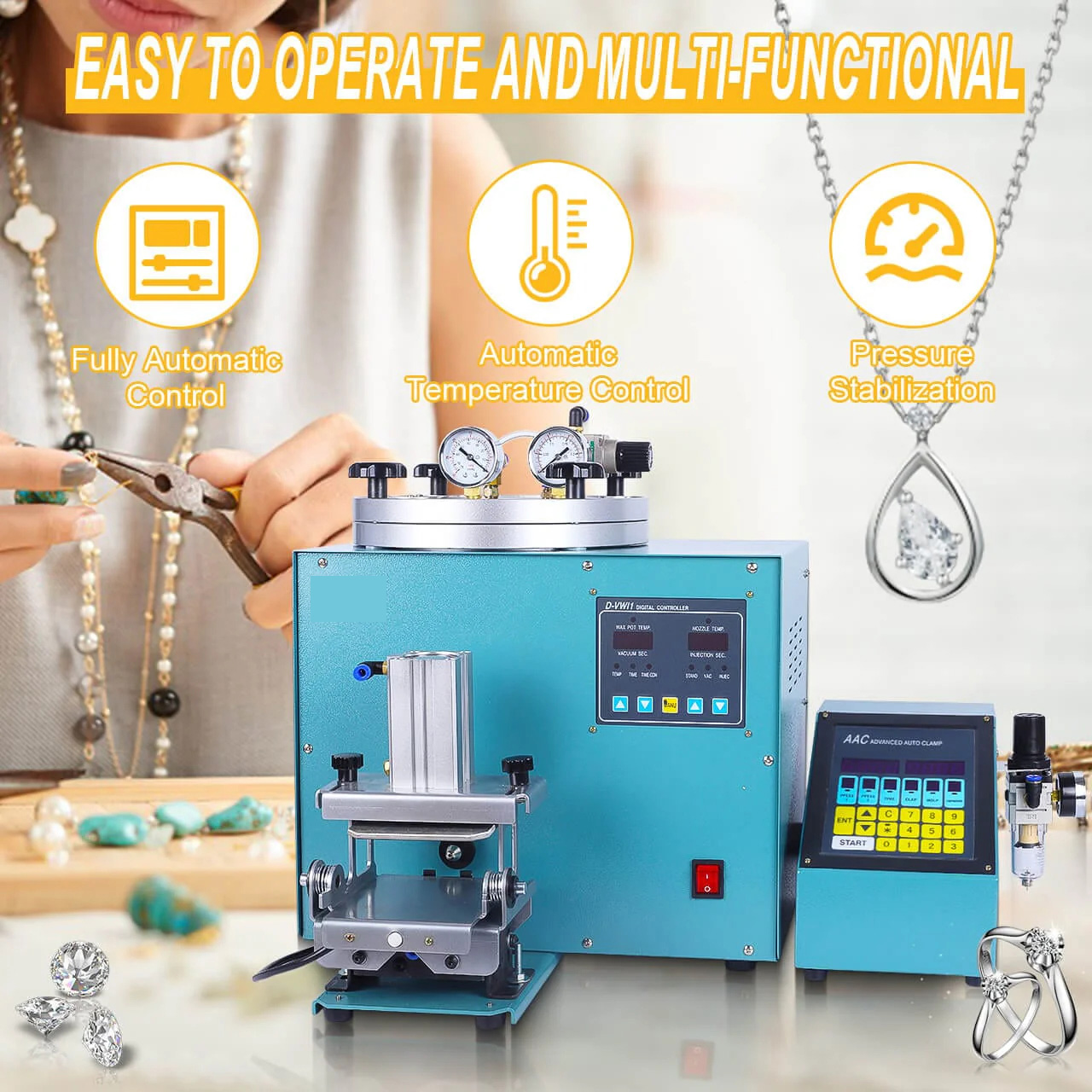

510W 3kg Fully Automatic Digital Control Jewelry Vacuum Wax Injection Machine

510W 3kg Fully Automatic Digital Control Jewelry Vacuum Wax Injection Machine

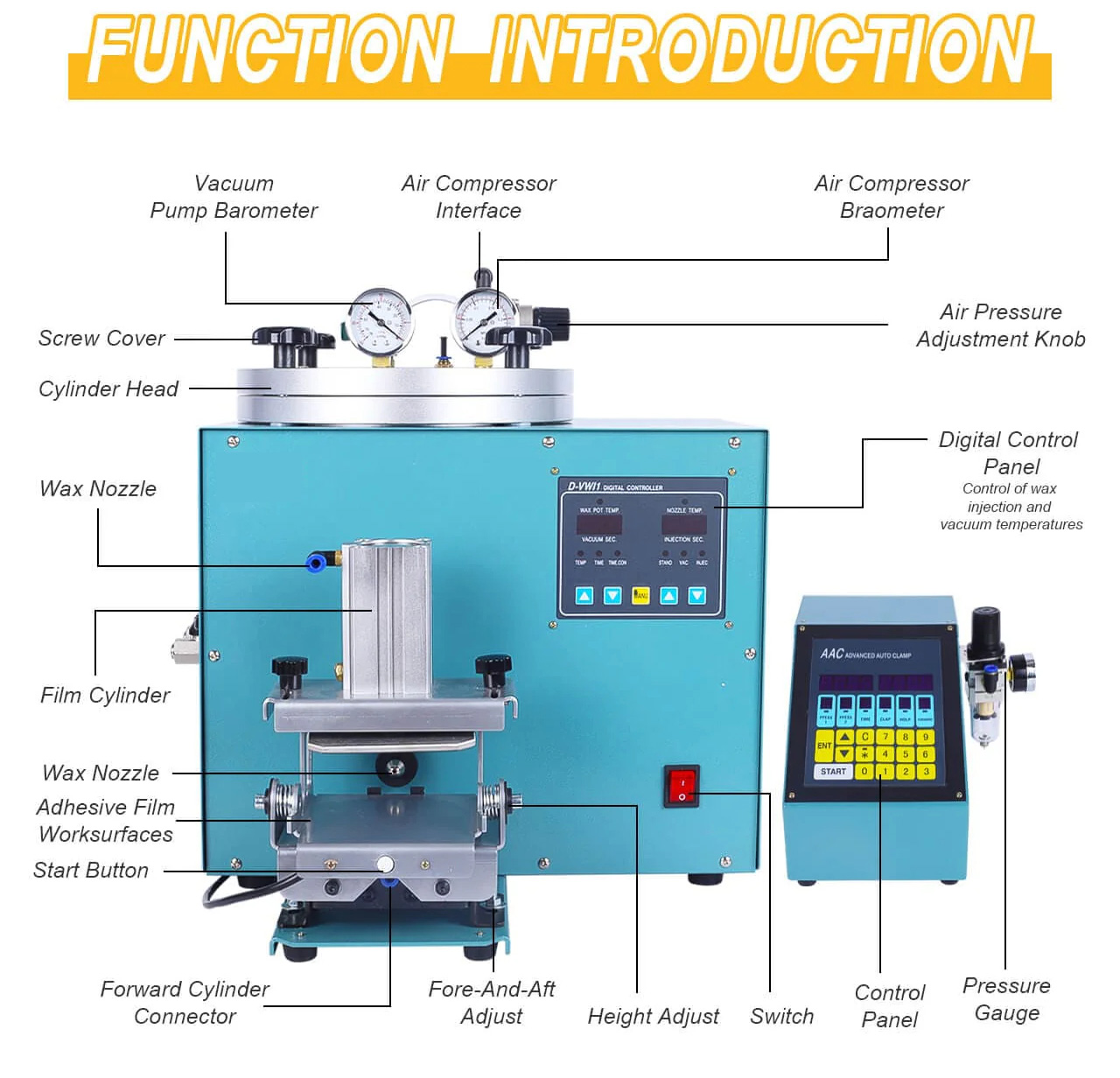

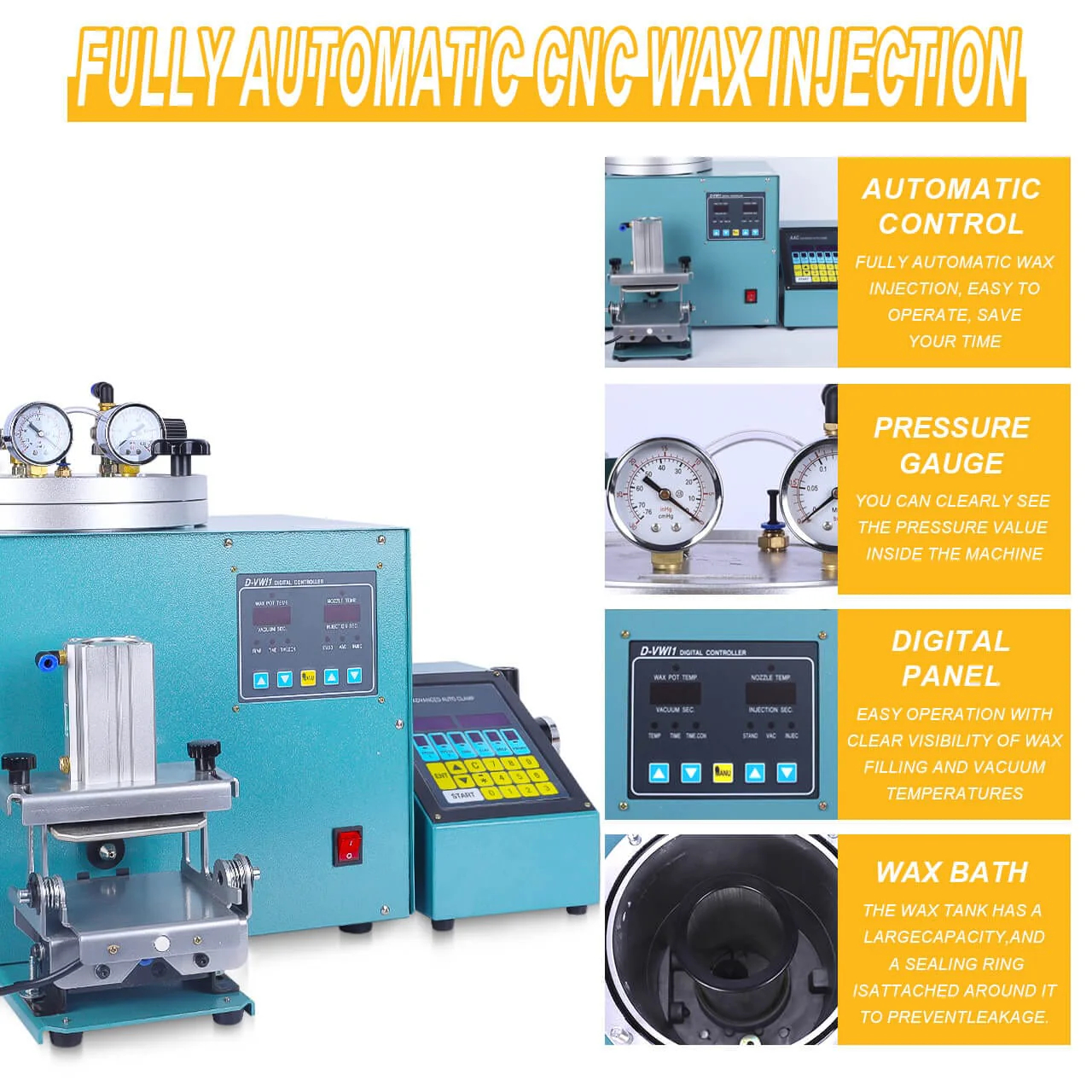

Features:
Automatic clamping and wax injection.
Digital display for control of temperature, time, and pressure.
Uses vacuum technology for wax flow.
Adjustable wax injection pressure with clear pressure gauge.
Temperature control with ±0.2℃ accuracy;
Larger wax injection distance for faster results;
Can process various jewelry materials including gold, platinum, silver, and stainless steel;
Used for large bracelets, micro inserts, and thin jewelry parts.

Note:
Requires an air compressor and vacuum pump (not included)

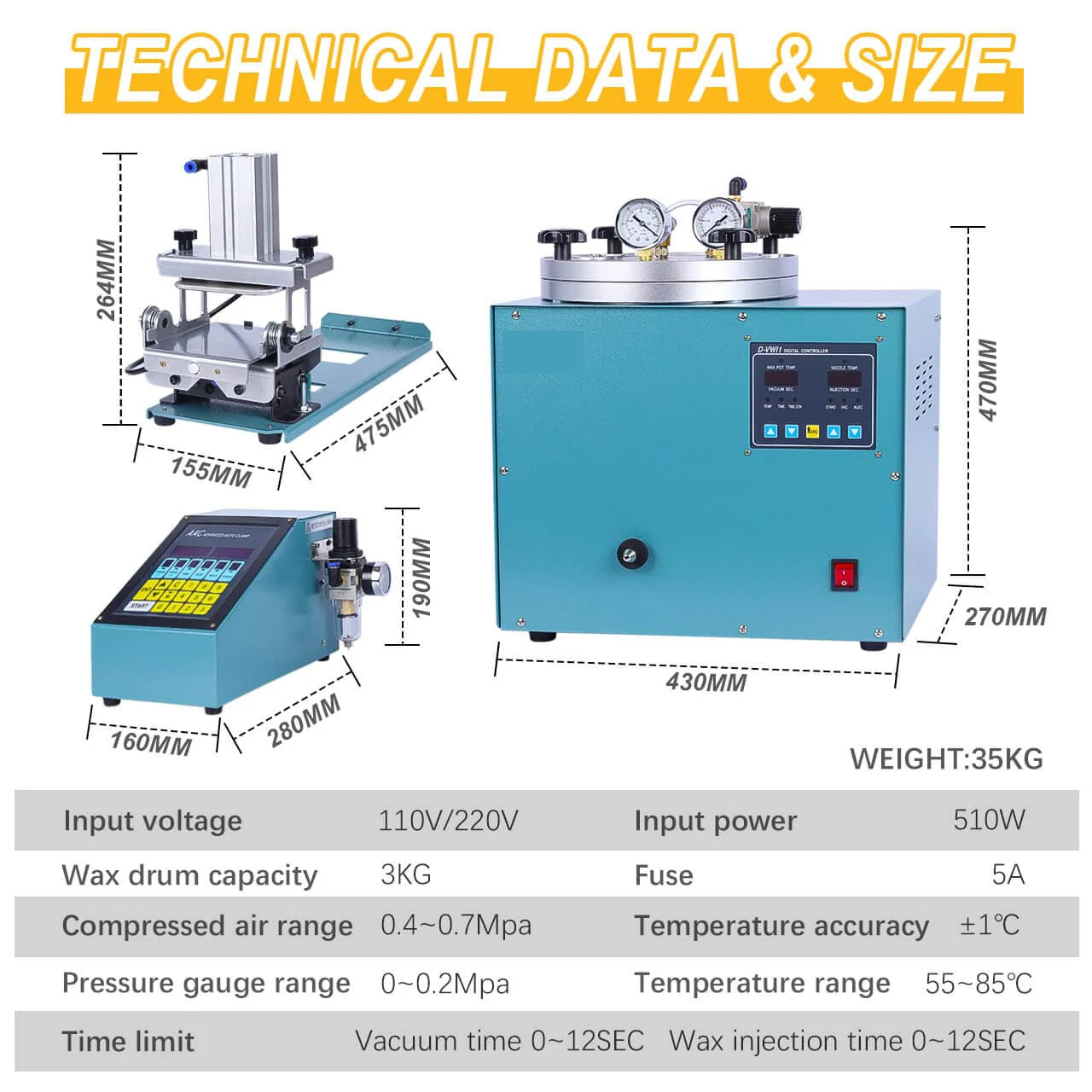

Specifications:
Voltage: 110V/220V, 50Hz/60Hz
Power:510W
Wax Drum Capacity: 3KG
Fuse:5A
Wax Pot Temperature Range: 0-100℃
Valve Temperature Range: 0-100℃
Compressed Air Range: 0.4-0.7MPa
Pressure Gauge Range: 0-0.2MPa
Working Temperature Range: 55-85℃
Temperature Accuracy: ±1℃
Vacuum Time: 0-12 sec
Wax Injection Time: 0-12 sec
Weight: 35kg

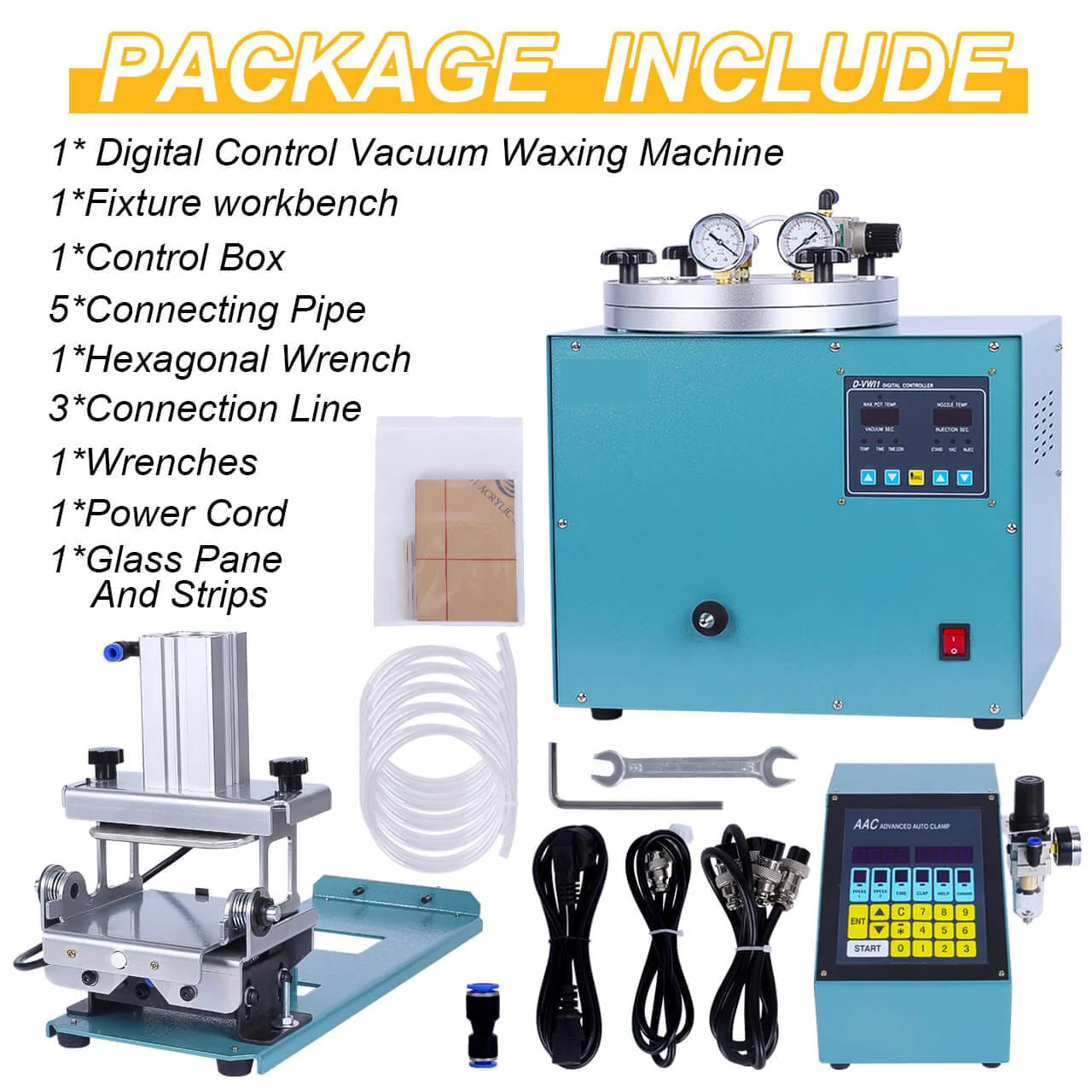

Packing List
1 x Digital Control Jewelry Vacuum Wax Injection Machine
1 x English Manual

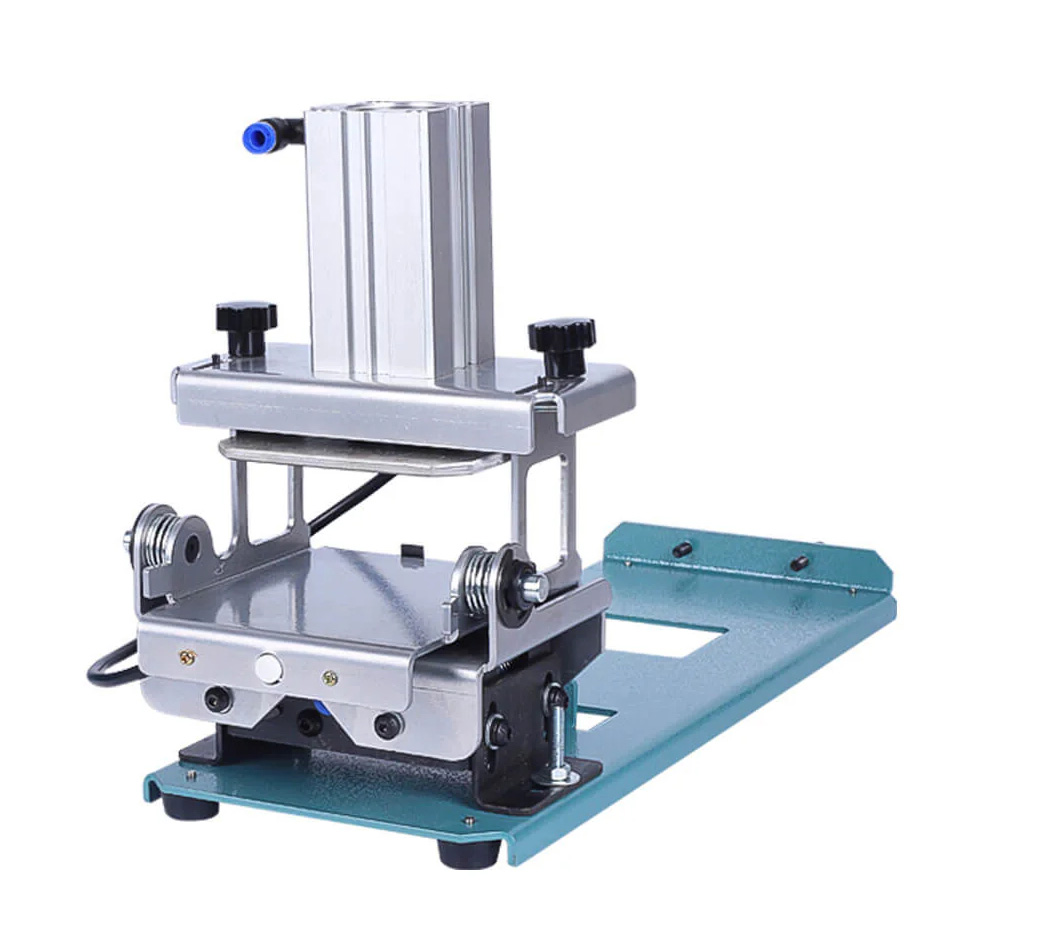

1 x Fixture Workbench
1 x Control Box
5 x Connecting Pipe
1 x Hexagonal Wrench
3 x Connection Line
1 x Wrench
1 x Power Cord
1 x Glass Pane and Strips
