3KG Digital Jewelry Vacuum Wax Injector Machine with Temperature Control

3KG Digital Jewelry Vacuum Wax Injector Machine with Temperature Control

Vacuum wax injection machine for jewelry wax patterns. Wax capacity 3 kg. Temperature range 55 to 85°C. For gold, platinum, K gold, silver, and stainless steel jewelry.

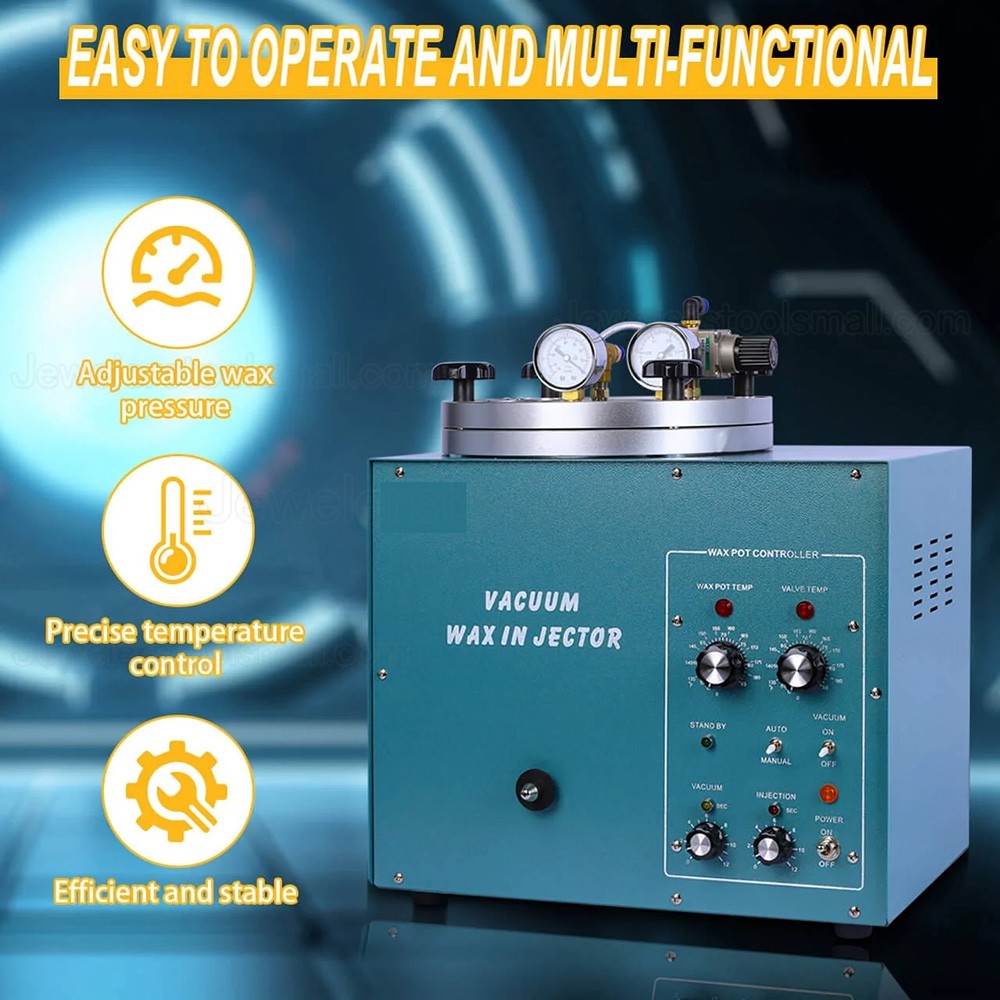

Features
Wax capacity:3 kg
Temperature range: 55 to 85°C
Vacuum technology: applies suction during wax injection

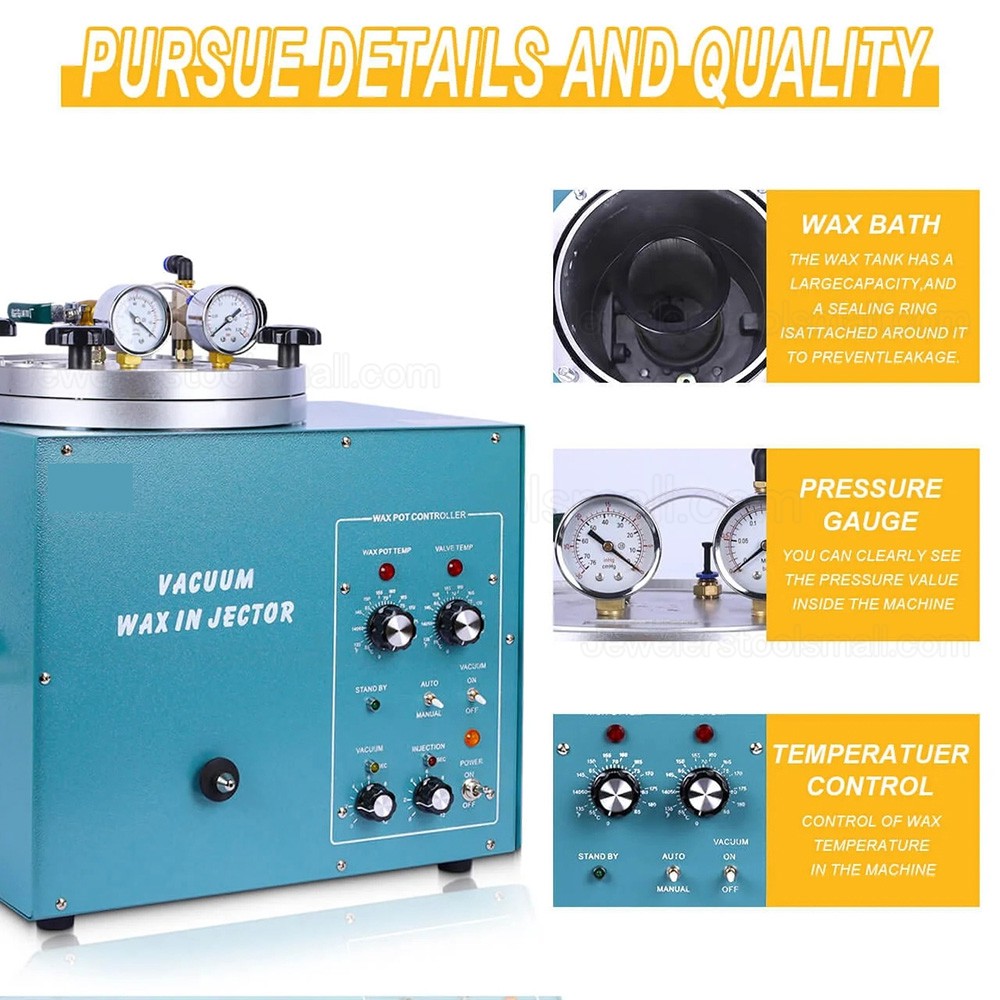

Pressure adjustment: adjustable injection pressure with pressure gauge
Temperature control: controller with ±1°C accuracy
Applications: large bracelets, micro inserts, thin jewelry pieces.

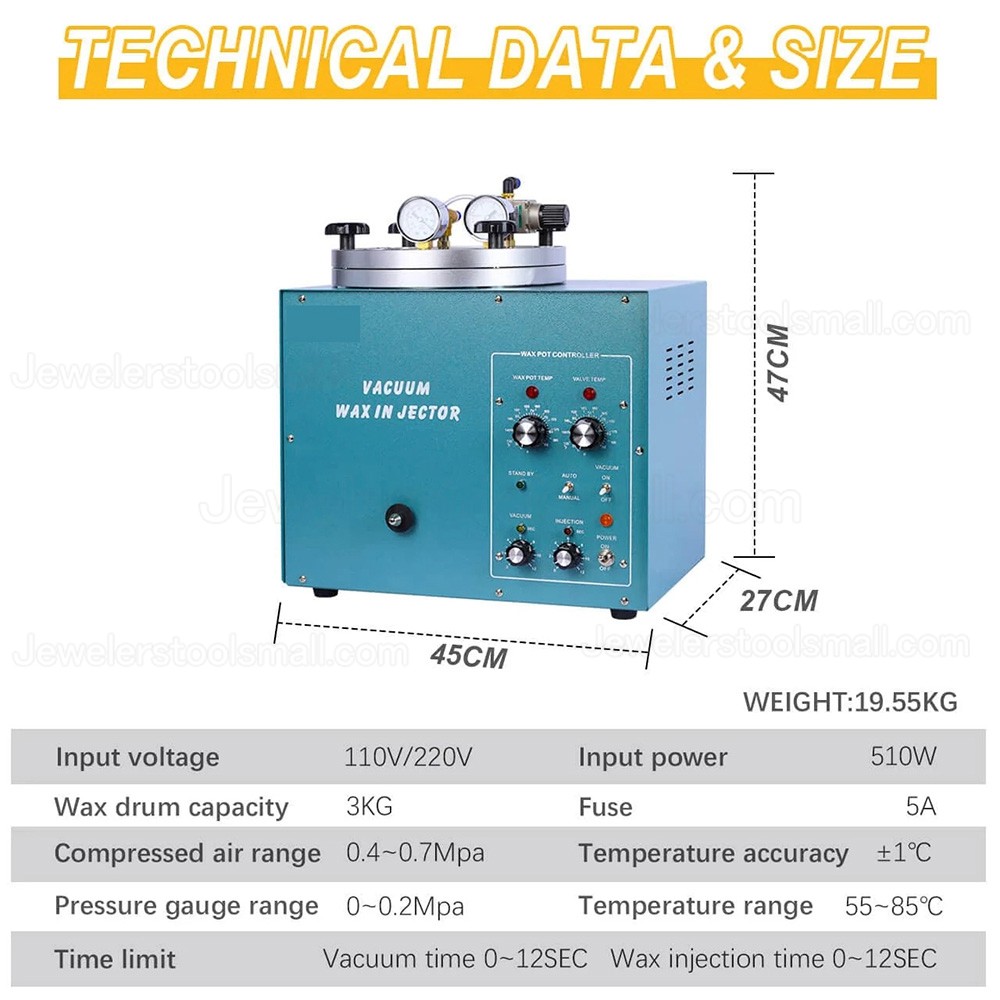

Specifications
Voltage: 110V/220V, 50 Hz
Power: 510W
Wax drum capacity: 3 kg
Fuse: 5A
Temperature range (wax pot): 0 to 100°C
Temperature range (valve): 0 to 100°C
Compressed air range: 0.4 to 0.7 MPa
Pressure gauge range: 0 to 0.2 MPa
Working temperature range: 55 to 85°C
Temperature accuracy: ±1°C
Vacuum time range: 0 to 12 seconds
Wax injection time range: 0 to 12 seconds
Weight: 19.55kg

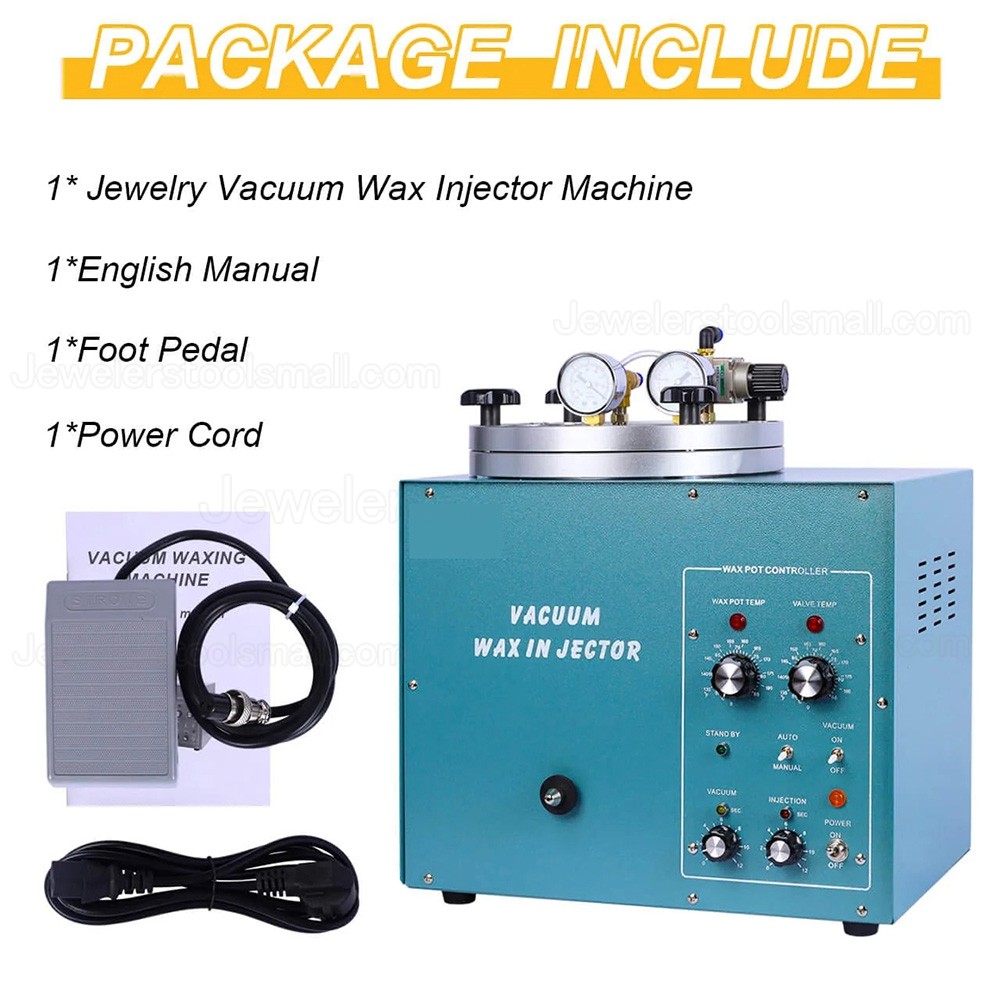

Package Includes
1 × Jewelry vacuum wax injector machine
1 × English manual
1 × Foot pedal
1 × Power cord

Note
Requires air compressor and vacuum pump. Air compressor and vacuum pump not included.
