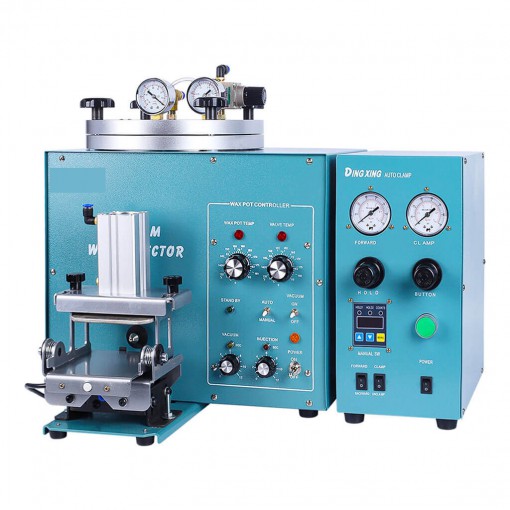

3KG 510W Fully Automatic Jewelry Vacuum Wax Injector Injection Machine

3KG 510W Fully Automatic Jewelry Vacuum Wax Injector Injection Machine

Features:

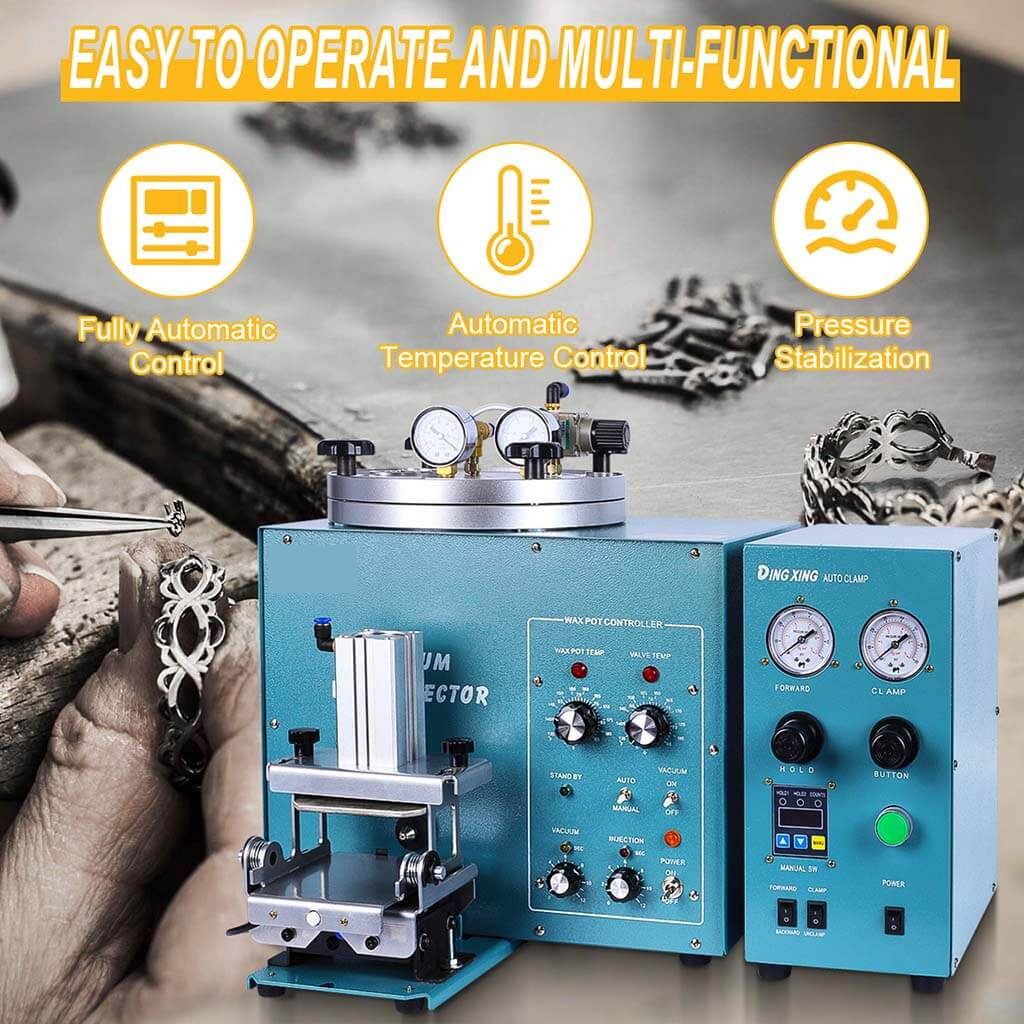

Automatic clamping structure for wax injection operation
Supports vacuum wax injection for jewelry mold making
Wax drum capacity: 3kg

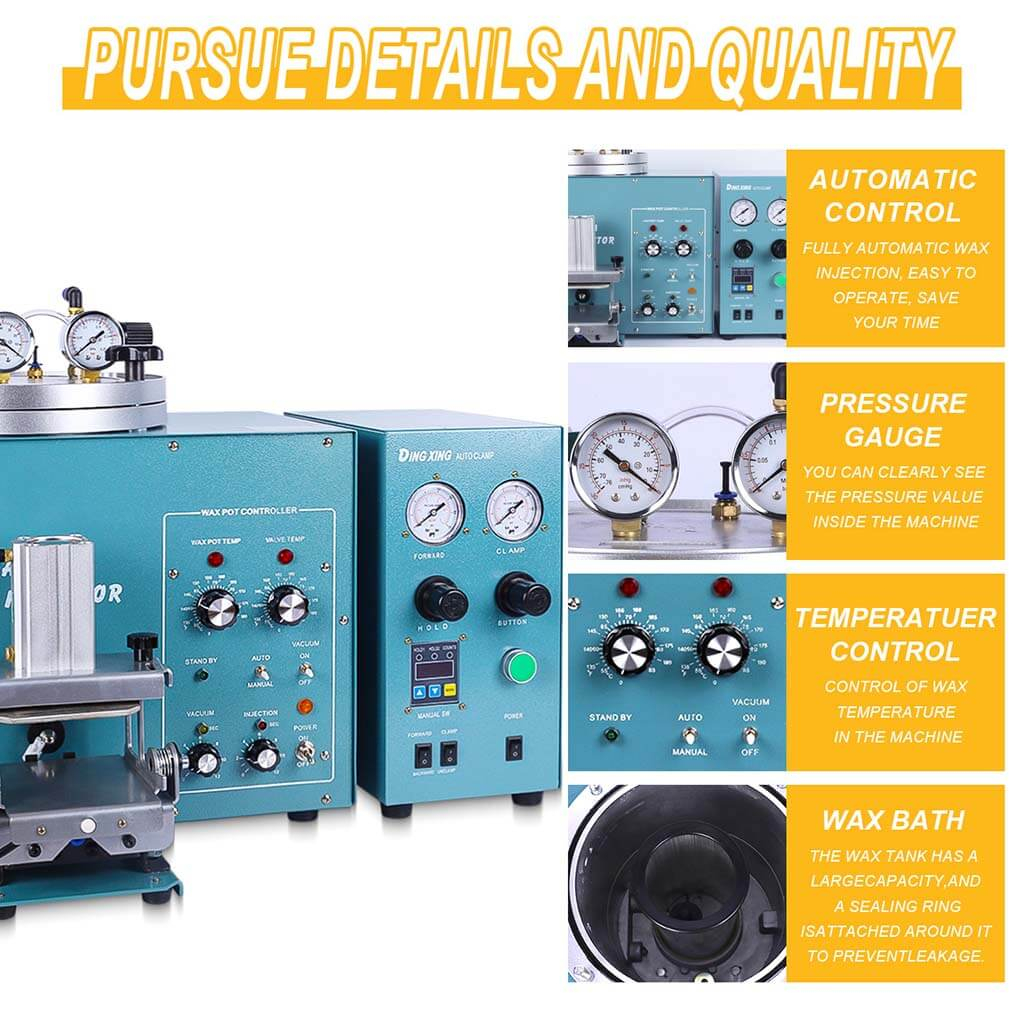

Adjustable wax injection pressure with pressure gauge display
Wax pot temperature control range: 0-100℃
Valve temperature control range: 0-100℃
Working temperature range: 55-85℃
Temperature accuracy: ±1℃
Vacuum time setting: 0-12 sec
Wax injection time setting: 0-12 sec
Can be used for wax patterns in gold, platinum, K gold, silver, and stainless steel jewelry processing;
Longer wax injection distance under the same pressure and temperature setting, for large bracelets, micro inserts, and thin jewelry parts.

Note:

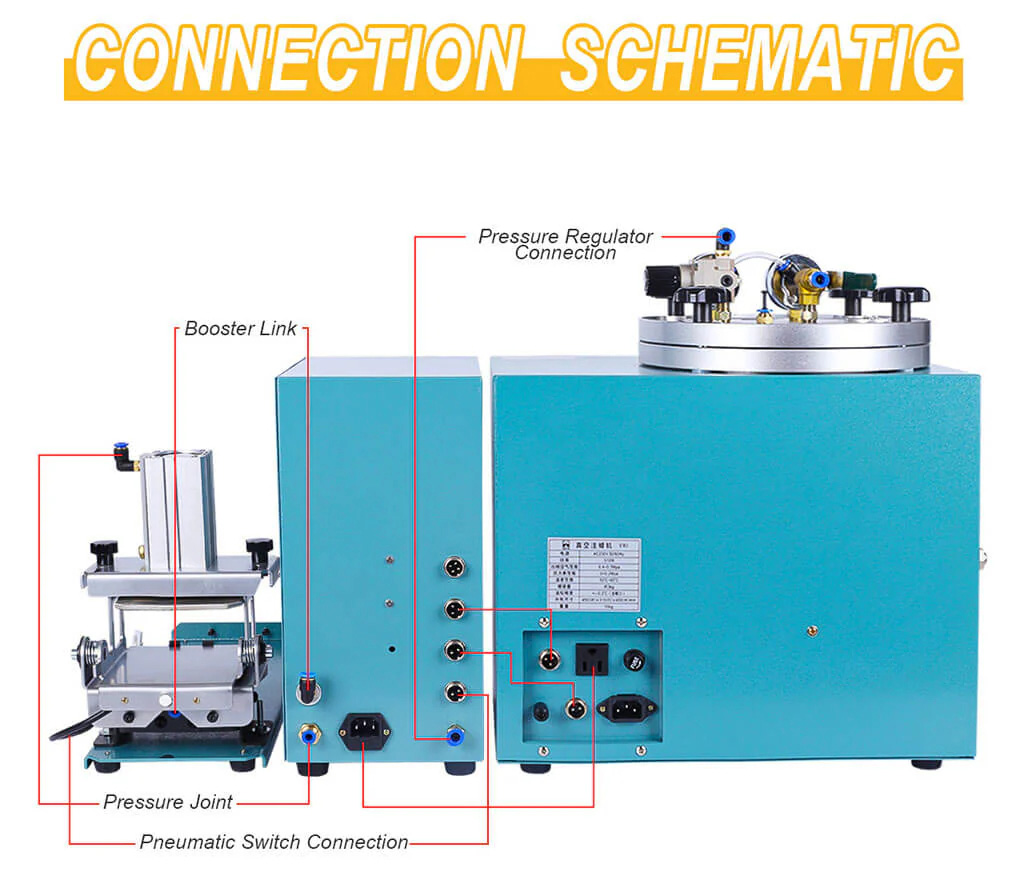

This machine is used with an air compressor and vacuum pump.
Air compressor and vacuum pump are not included.

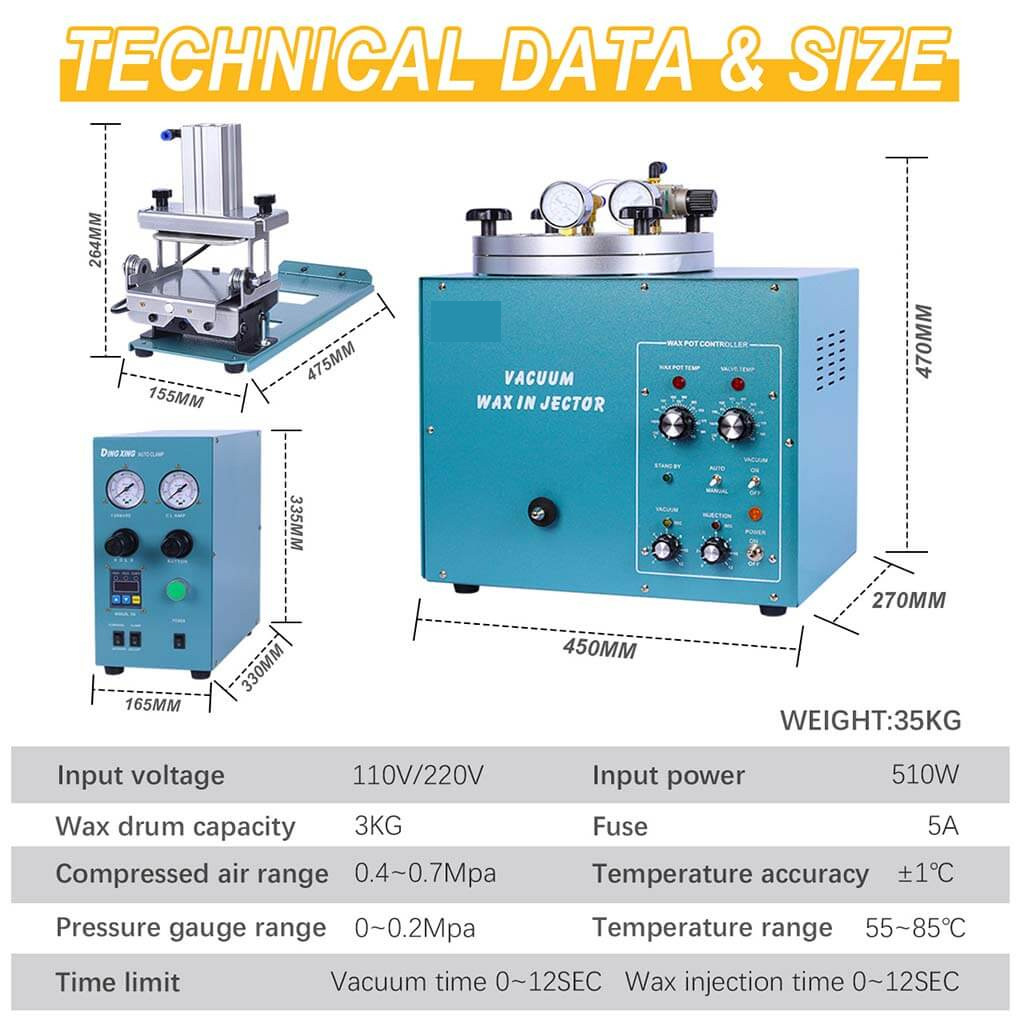

Specifications
Voltage: 110V/220V, 50Hz/60Hz
Power: 510W
Wax Drum Capacity: 3KG
Fuse: 5A
Wax Pot Temperature Range: 0-100℃
Valve Temperature Range: 0-100℃
Working Temperature Range: 55-85℃
Compressed Air Range: 0.4-0.7MPa
Pressure Gauge Range: 0-0.2MPa
Temperature Accuracy: ±1℃
Vacuum Time: 0-12 sec
Wax Injection Time: 0-12 sec
Weight: about 19.55kg

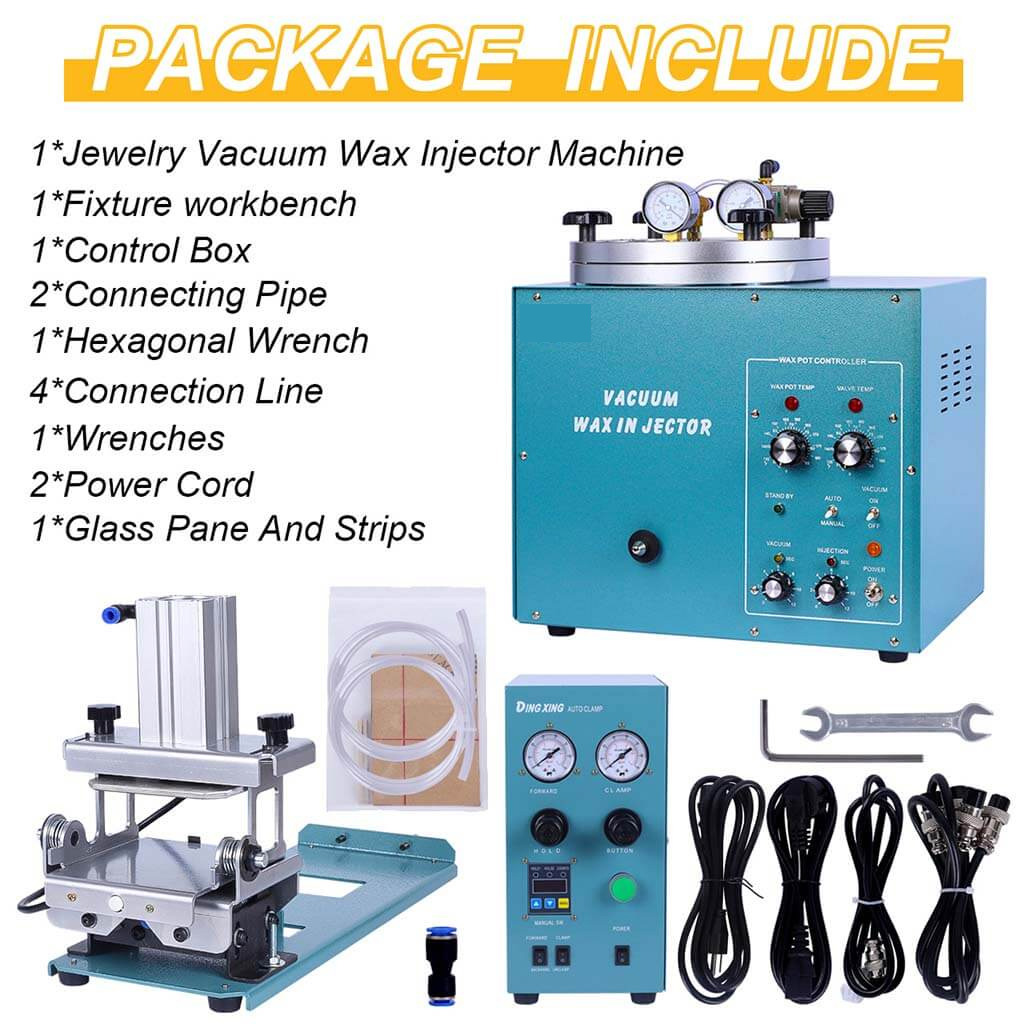

Packing List
1 x Jewelry Vacuum Wax Injector Machine
1 x English Manual
1 x Fixture Workbench
1 x Control Box
2 x Connecting Pipe
1 x Hexagonal Wrench
4 x Connection Line
1 x Wrench
2 x Power Cord
1 x Glass Pane and Strips
