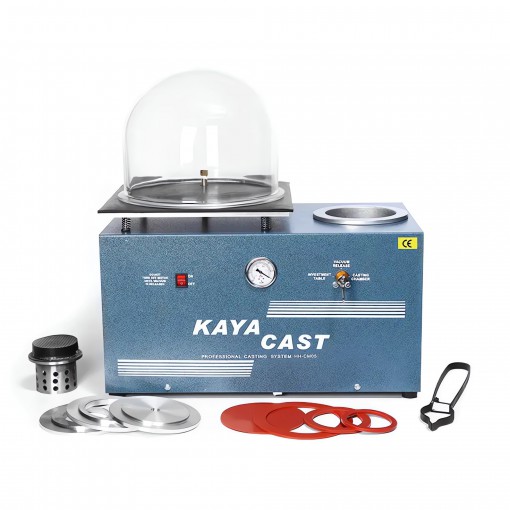

6L 1000W/1.5HP Jewelry Vacuum Investing & Casting Machine

6L 1000W/1.5HP Jewelry Vacuum Investing & Casting Machine

This machine uses vacuum technology for jewelry casting. It is designed for small to medium-scale production. The interface includes controls for casting operations.

Features:

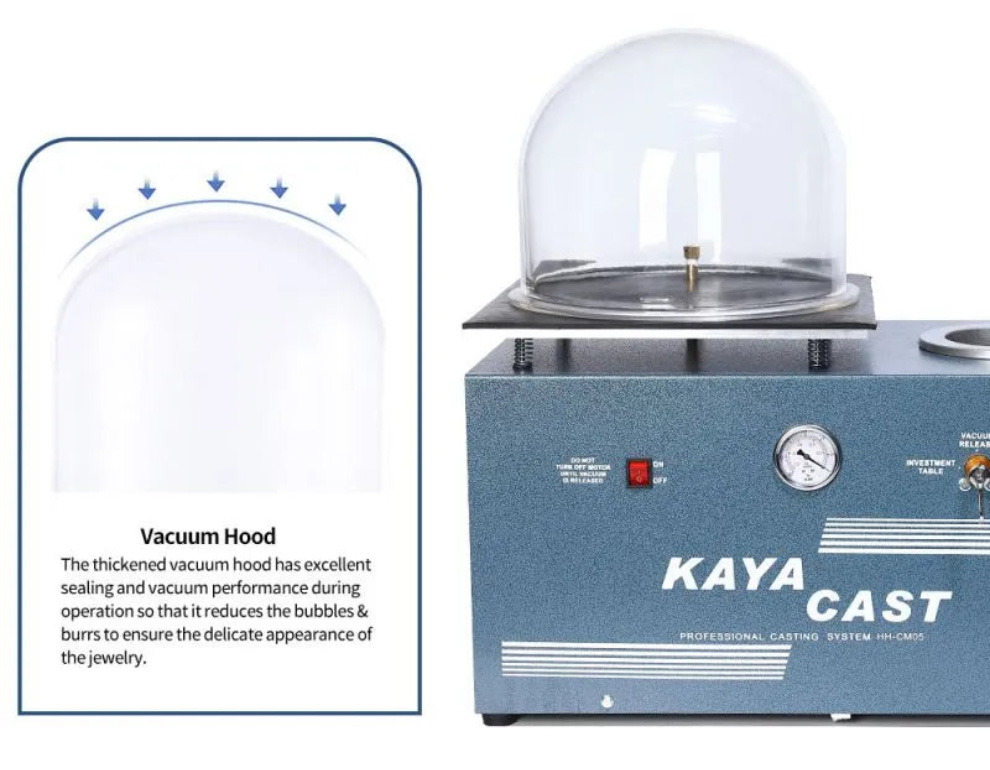

Vacuum hood made of thick plastic, designed for sealing during casting.
Built-in vacuum pump with dual-use function for vacuum operation.

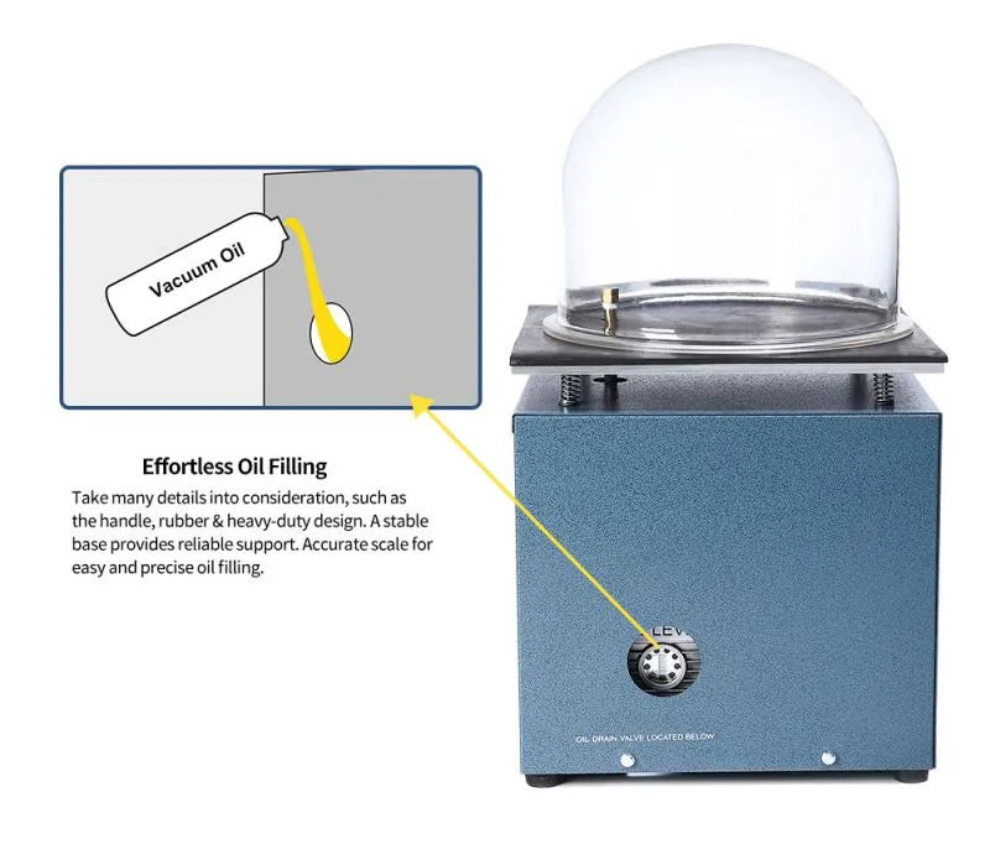

Integrated refueling port with visible reference line for oil level adjustment.

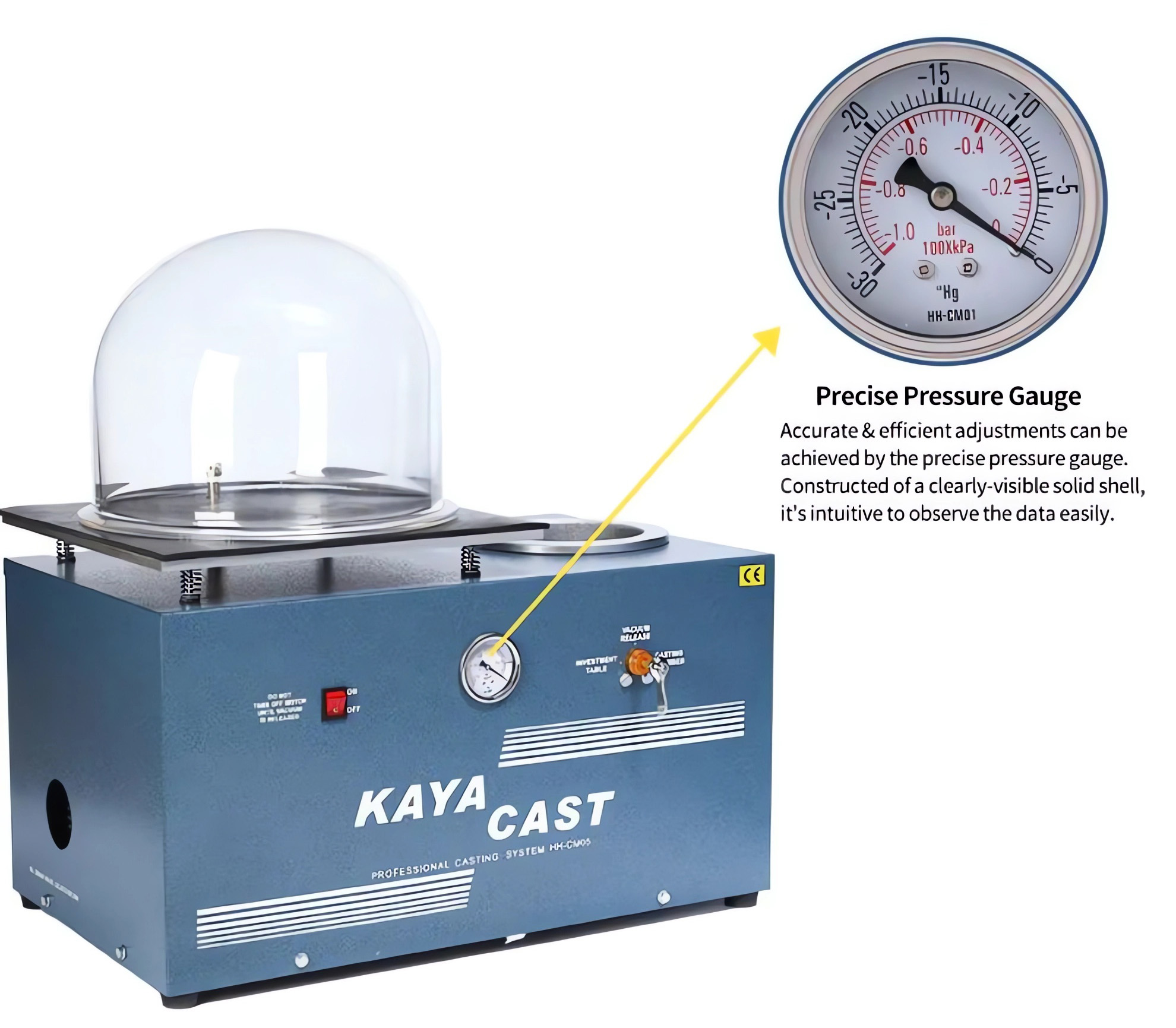

Pressure gauge with clear display for monitoring vacuum levels.
Rear ventilation openings for heat dissipation during operation.
Metal frame structure with fixed layout for stable operation.
Used in jewelry casting processes with metals such as gold, silver, copper, and alloys.


Specifications
Power: 1000W(1.5HP)
Votlage:220V/110V
Investment Plate Size: 400*400MM
Bell Jar:375*300MM
Maximum Casting Flasks: 5*8 Inches

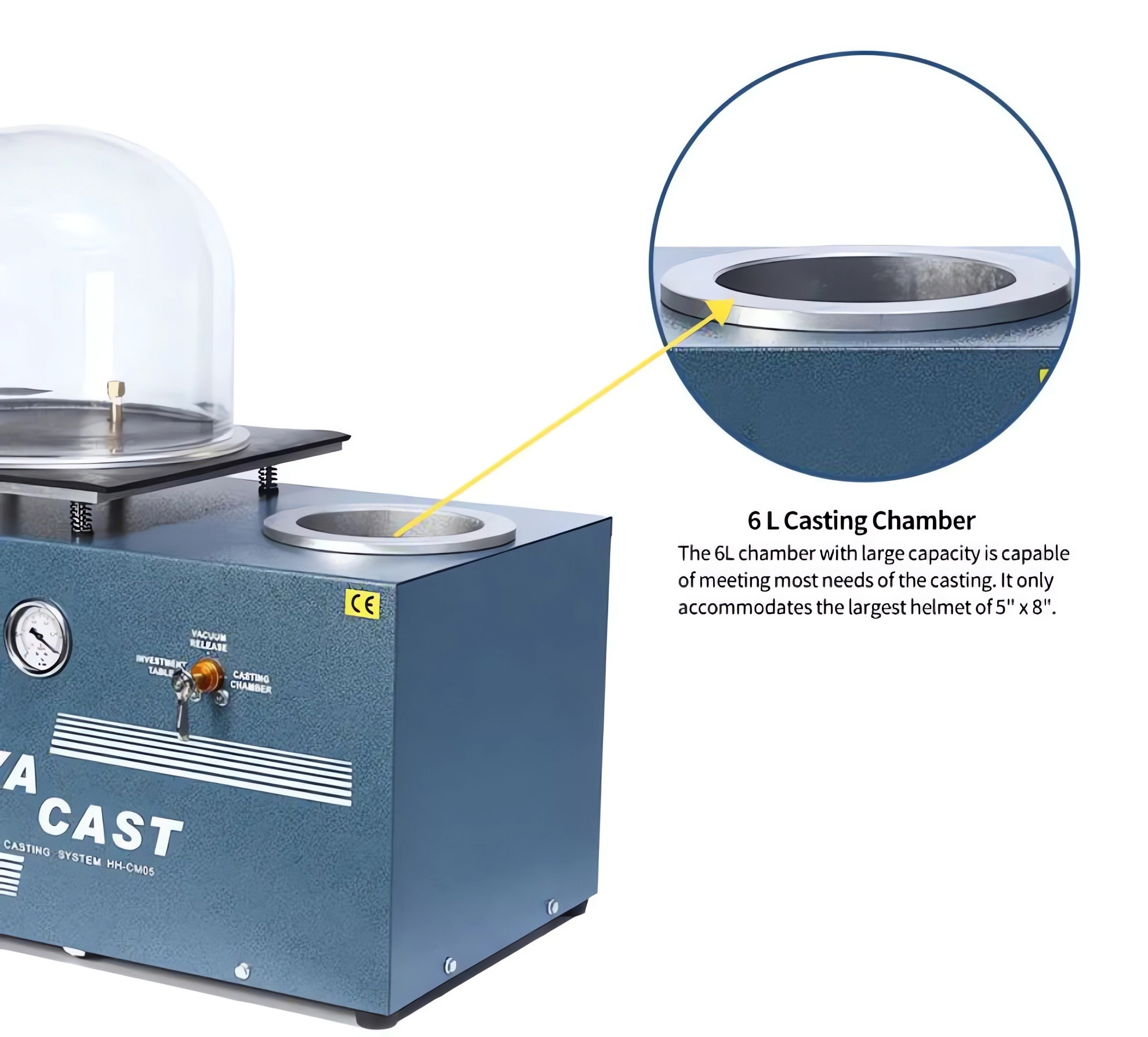

Casting Room:160*220MM
Dimension:68*45*50CM
Machine Shipping Dimension: 77*55*58CM
Bell Jar Shipping dimension:42*42*32CM
Shipping Weight:63KG
