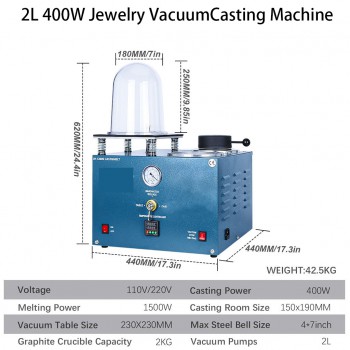

2L /4L / 6L Lost Wax Method Jewelry Vacuum Investing Casting Machine
Our Price:$999.00
2L /4L / 6L Lost Wax Method Jewelry Vacuum Investing Casting Machine

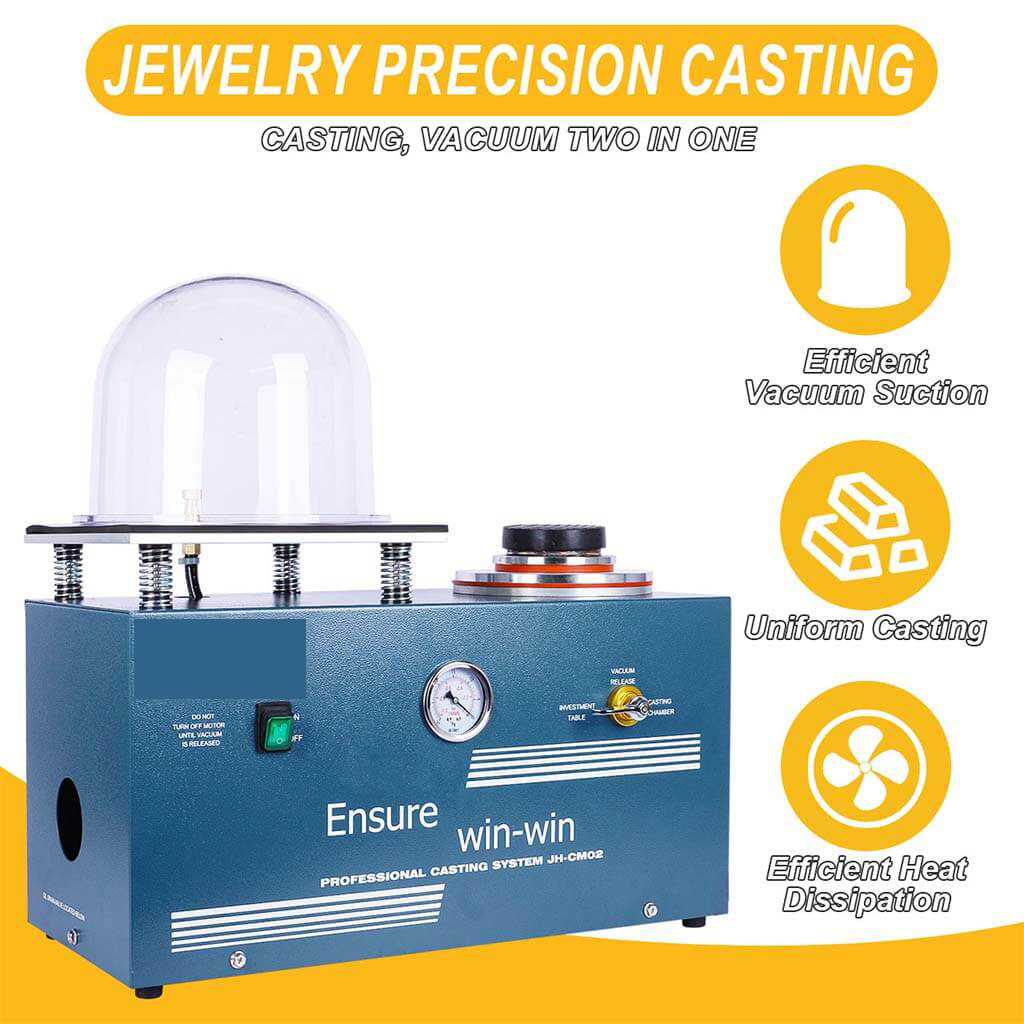

Features:
Vacuum hood made of thick aviation plastic

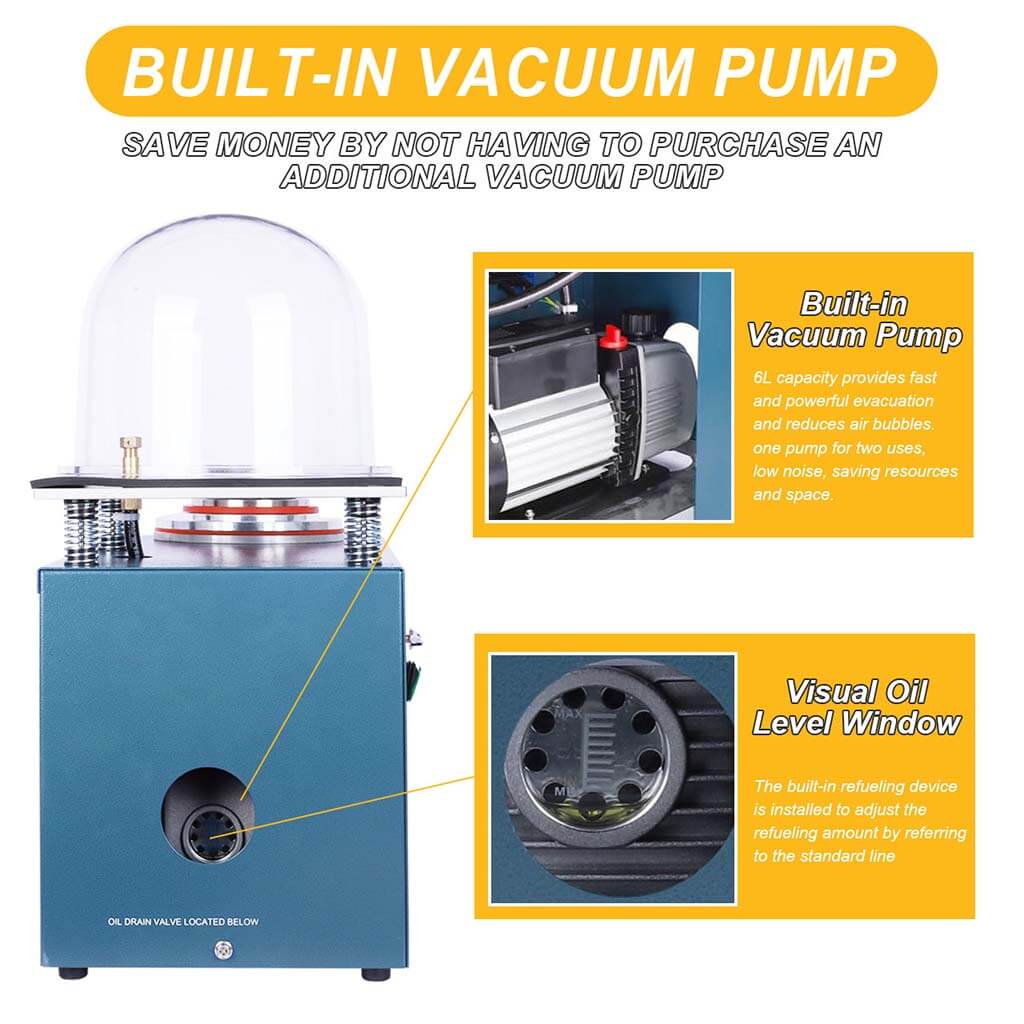

Built-in vacuum pump for casting and investing
Built-in refueling device with standard line for oil level reference

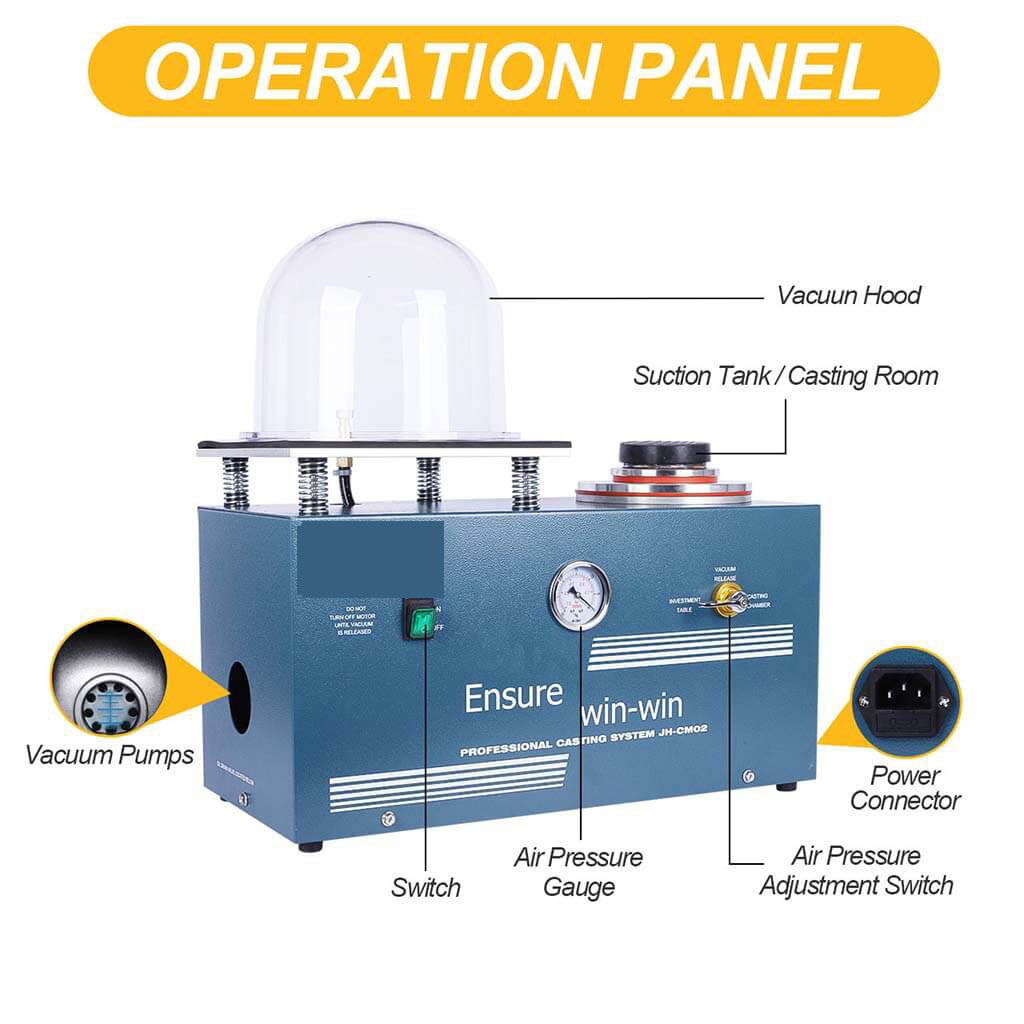

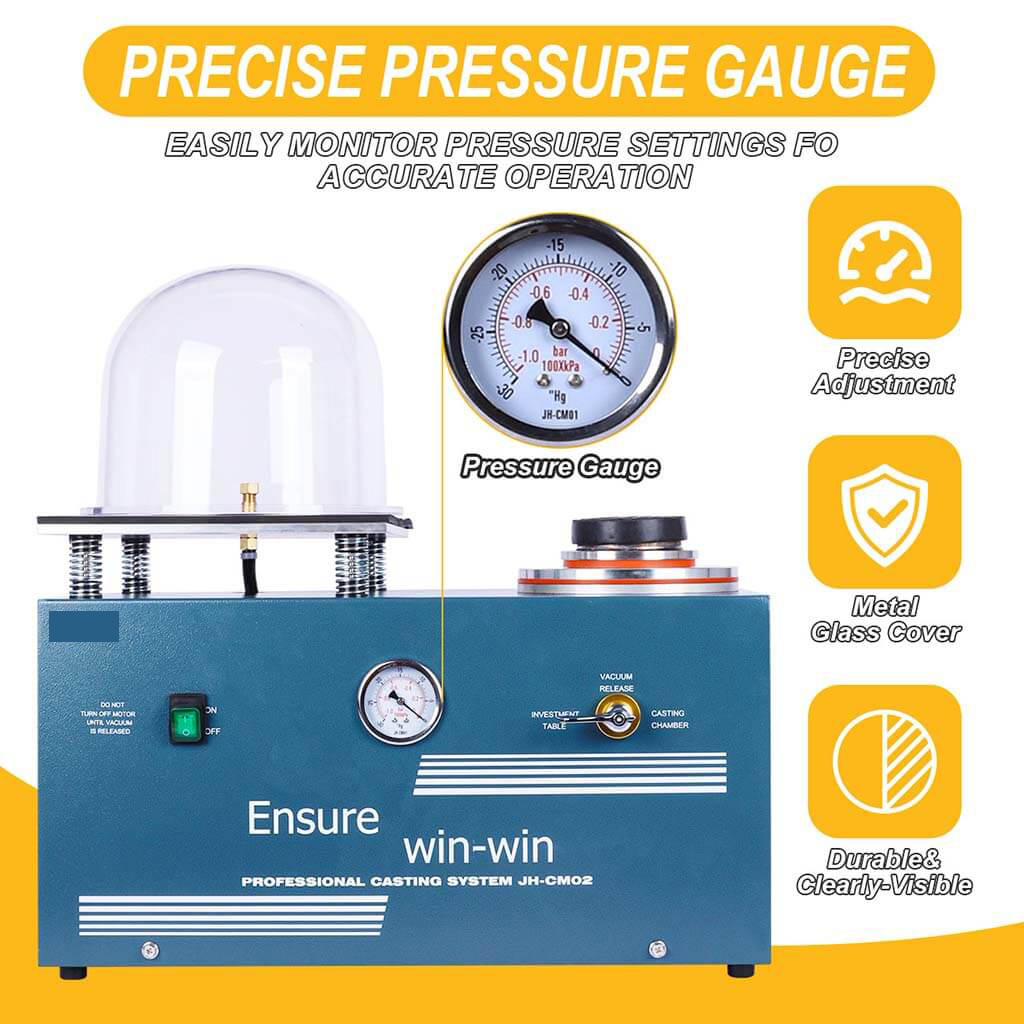

Pressure gauge for reading pressure levels
Back vents for heat dissipation
Application: Jewelry processing factories, jewelry design shops, art manufacturers
Compatible metals: K gold, silver, copper, and other alloy products
Note: Vacuum oil not included. Add vacuum oil before use.

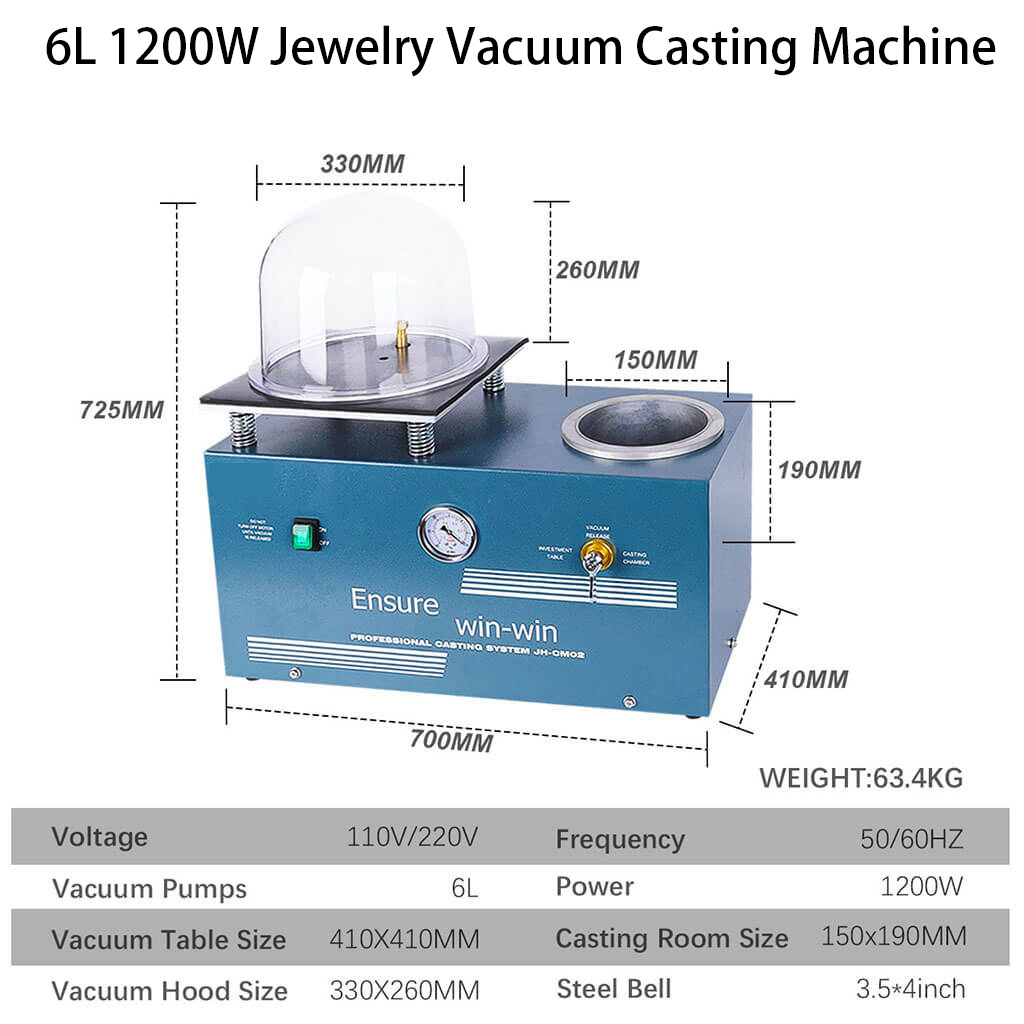

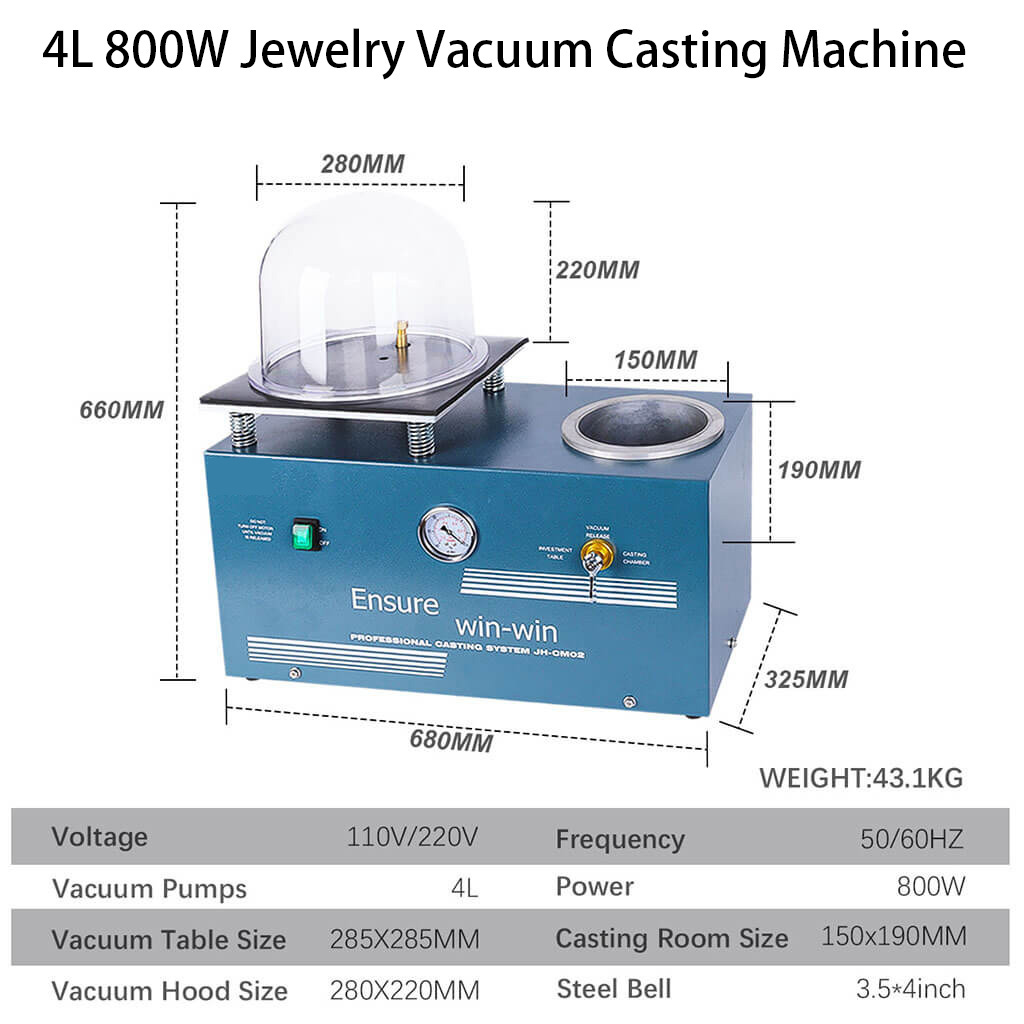

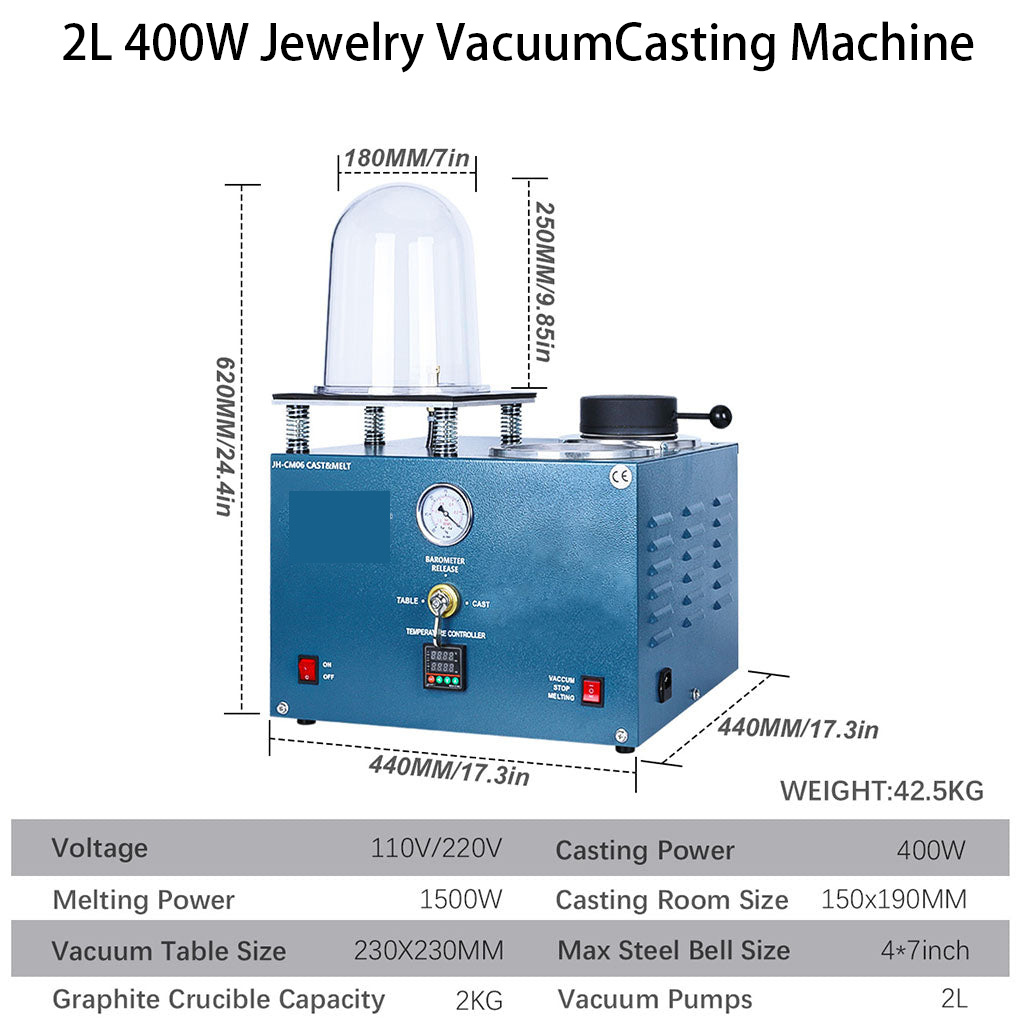

| Specification | 2L Model | 4L Model | 6L Model |
|---|---|---|---|
| Voltage | 110V / 220V | 110V / 220V | 110V / 220V |
| Power | 400W | 800W | 1200W |
| Vacuum Pump | 2L | 4L | 6L |
| Vacuum Table Size | 230 × 230 mm | 285 × 285 mm | 410 × 410 mm |
| Vacuum Hood / Bell Jar Size | 180 × 250 mm | 280 × 220 mm | 330 × 260 mm |
| Casting Room Size | 150 × 190 mm | 150 × 190 mm | 150 × 190 mm |
| Plaster Mold Size | 3.5×4 Inch | 3.5 × 4 inch | 3.5 × 4 inch |
| Crucible Capacity | 2 KG | 4KG | 6KG |
| Machine Dimensions | 440 × 440 × 610 mm | 680 × 325 × 660 mm | 700 × 410 × 725 mm |
| Weight | 42.5 kg | 43.1 kg | 63.4 kg |

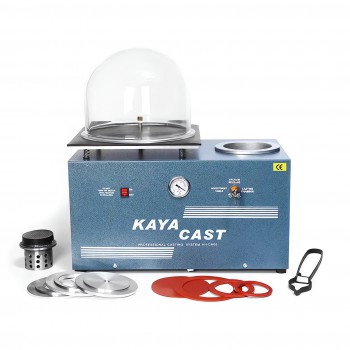

Package Included
1*Vacuum Casting Machine
1*Vacuum Hood
1*Stainless Steel Plaster Mold
3*Metal Gasket
4*Rubber Gasket
1*Stainless Steel Plaster Mold Pliers
1*Power Cable
1*User's Manual
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
