Jewellery Pneumatic Engraving Machine Double Ended Hand Engraver Graver Max
Jewelry Pneumatic Engraver GraverMax Double Ended
Features:
Precise & Adjustable Gauge:

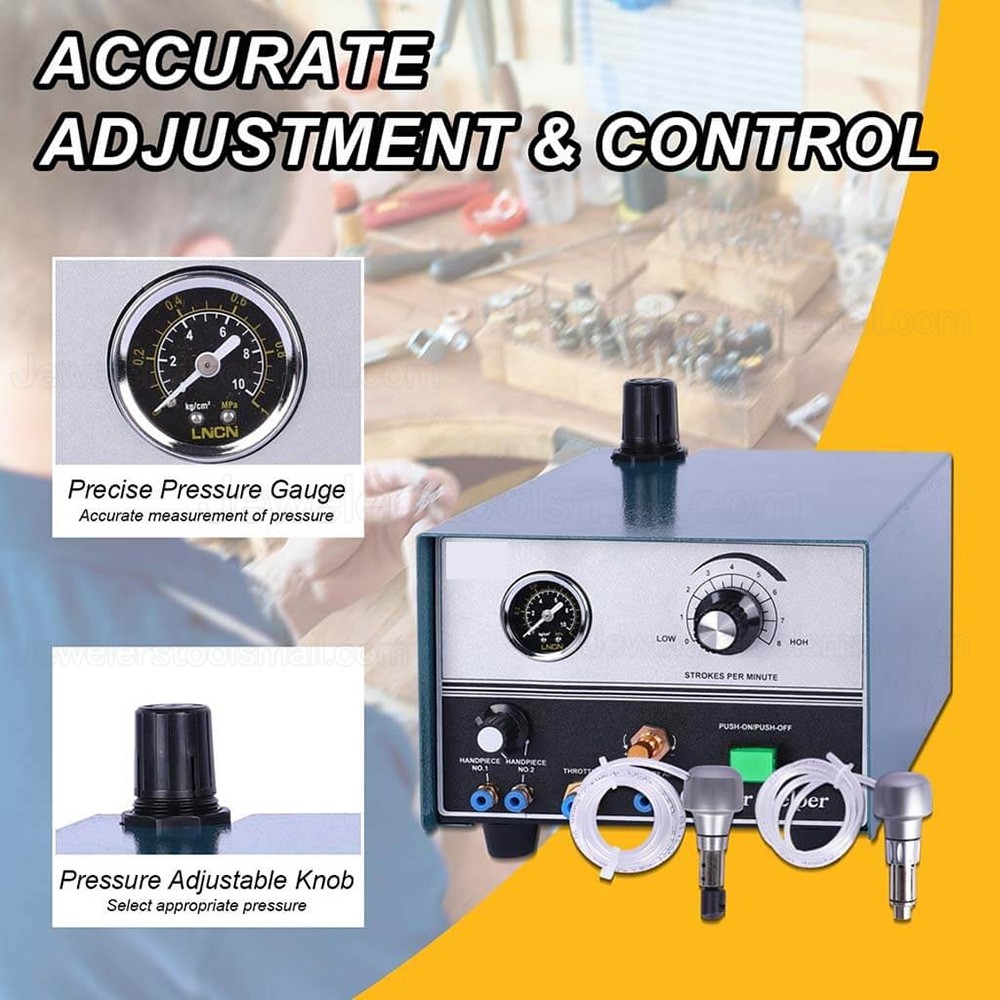

The pneumatic engraver features 1400 strokes per minute, a throttle bias adjustment valve for tailoring throttle response; a precise air regulator.
Portable Design:
Portable and compact, made of durable material; the manual engraver pneumatic machine is easy to move and work in different places with compact and light-weight design.

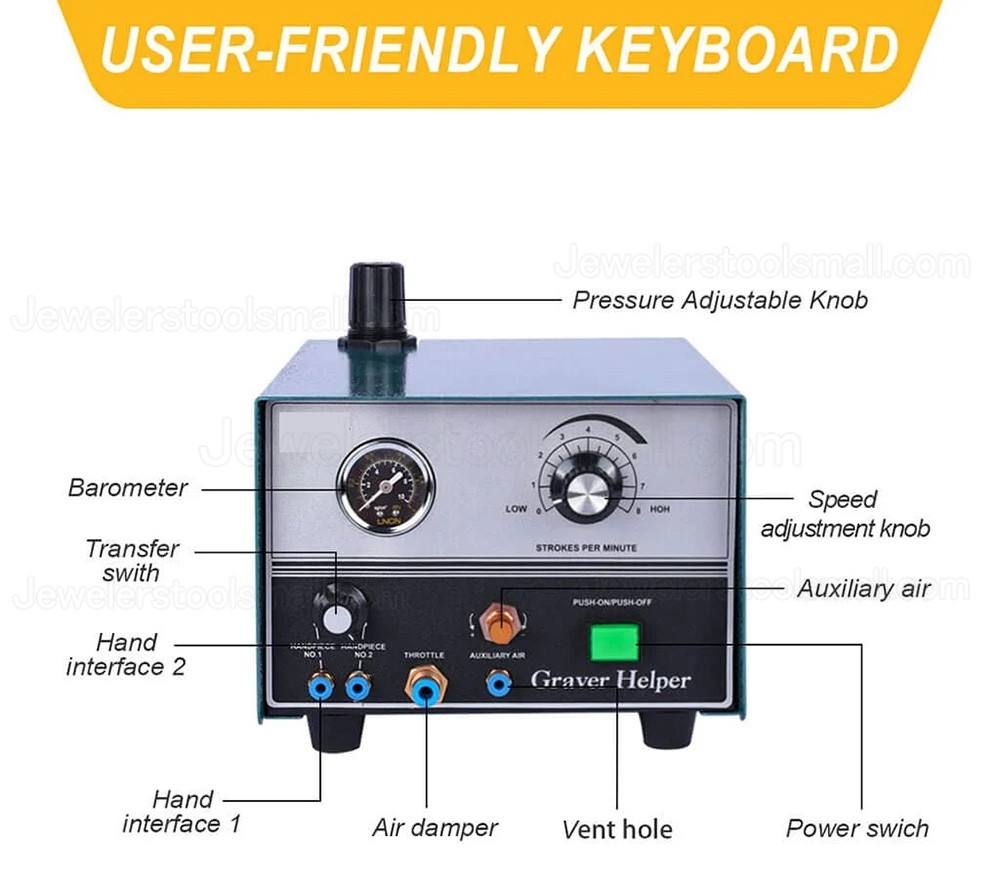

Simple Control Panel:

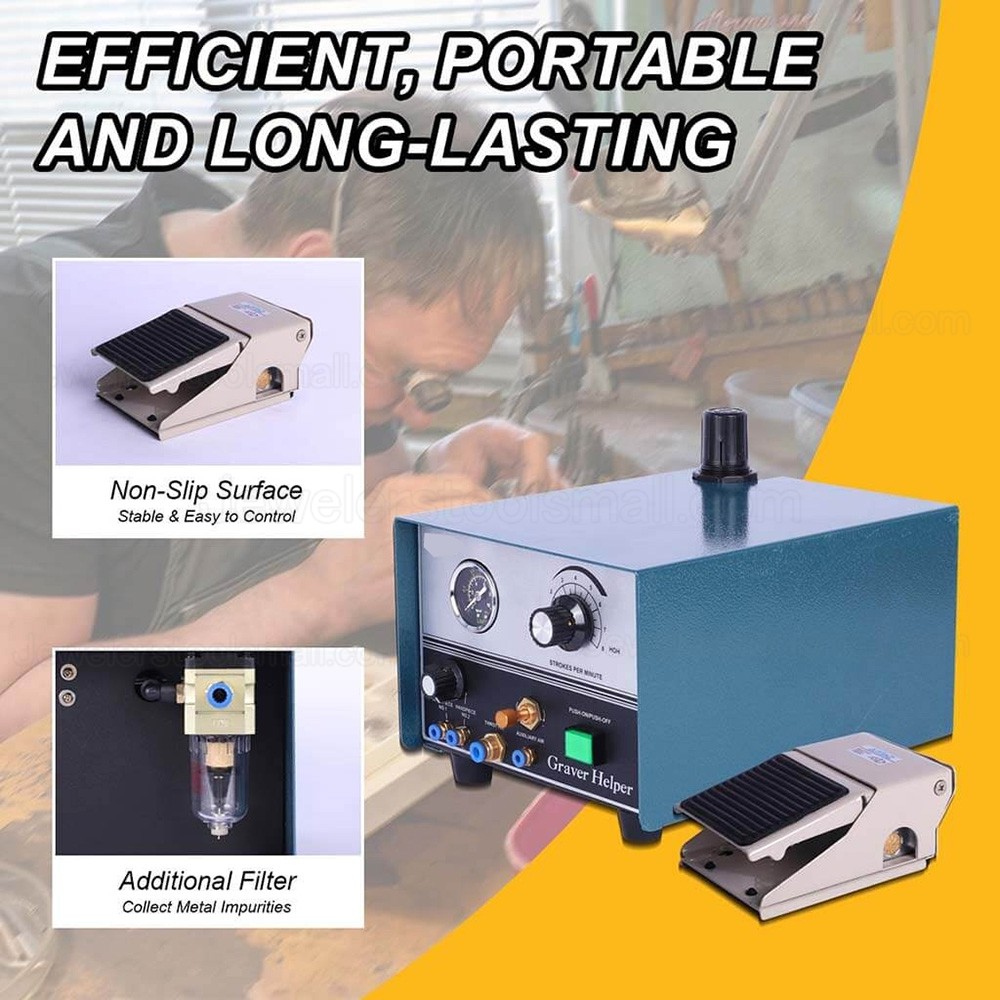

Adopting user-friendly keyboard design & reasonable layout, easy to operate, intuitive & clear. The foot pedal is convenient for precise control.
Multiple Applications:
Pneumatic hand engraving machines are suitable for jewelry, crafts, wrought iron & other industries and can be regarded as a good helper for engravers.

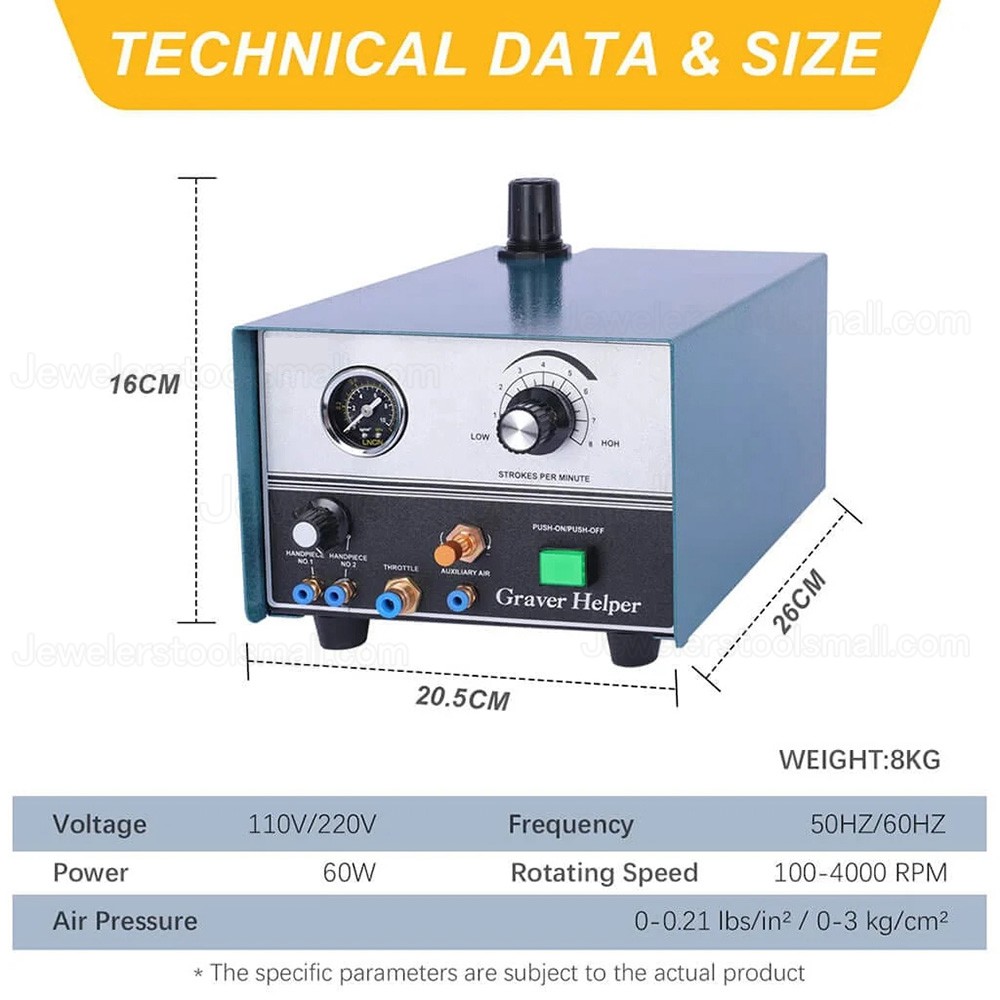

Main Parameters:
Voltage:220V,50/60Hz,
Power: 60W,
Air Pressure:0~3kg/c,
Rotate Speed: 100~4000RPM,
Dimension: 260x210x250mm,
Packing Size: 315x27x250mm,
Weight: 8.5kg,

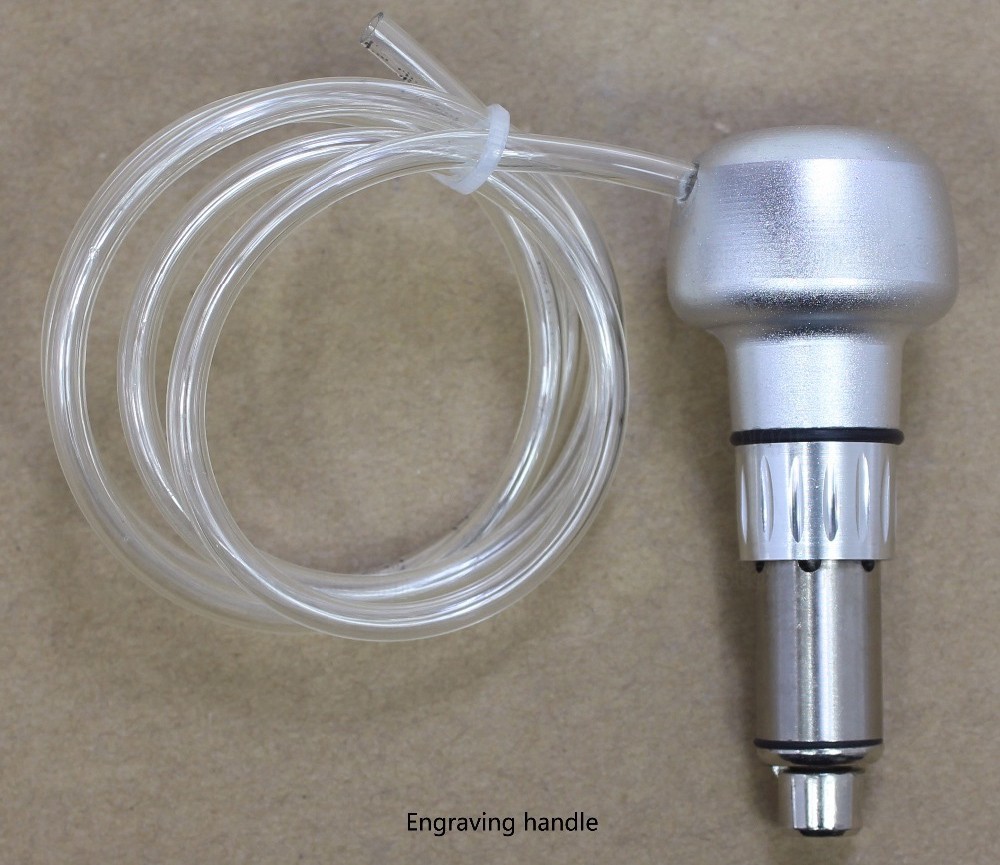

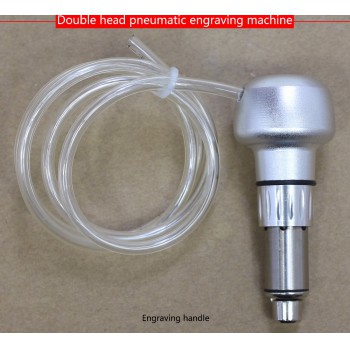

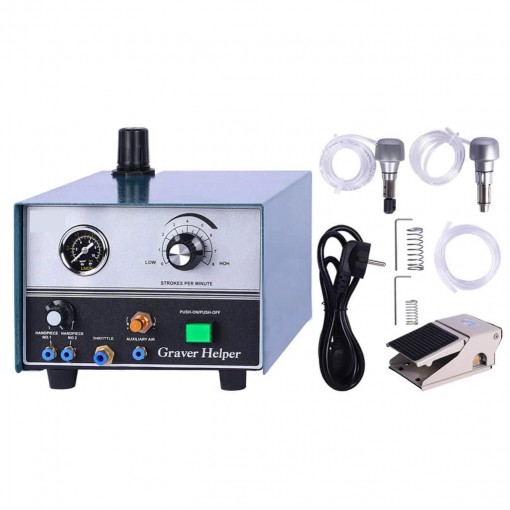

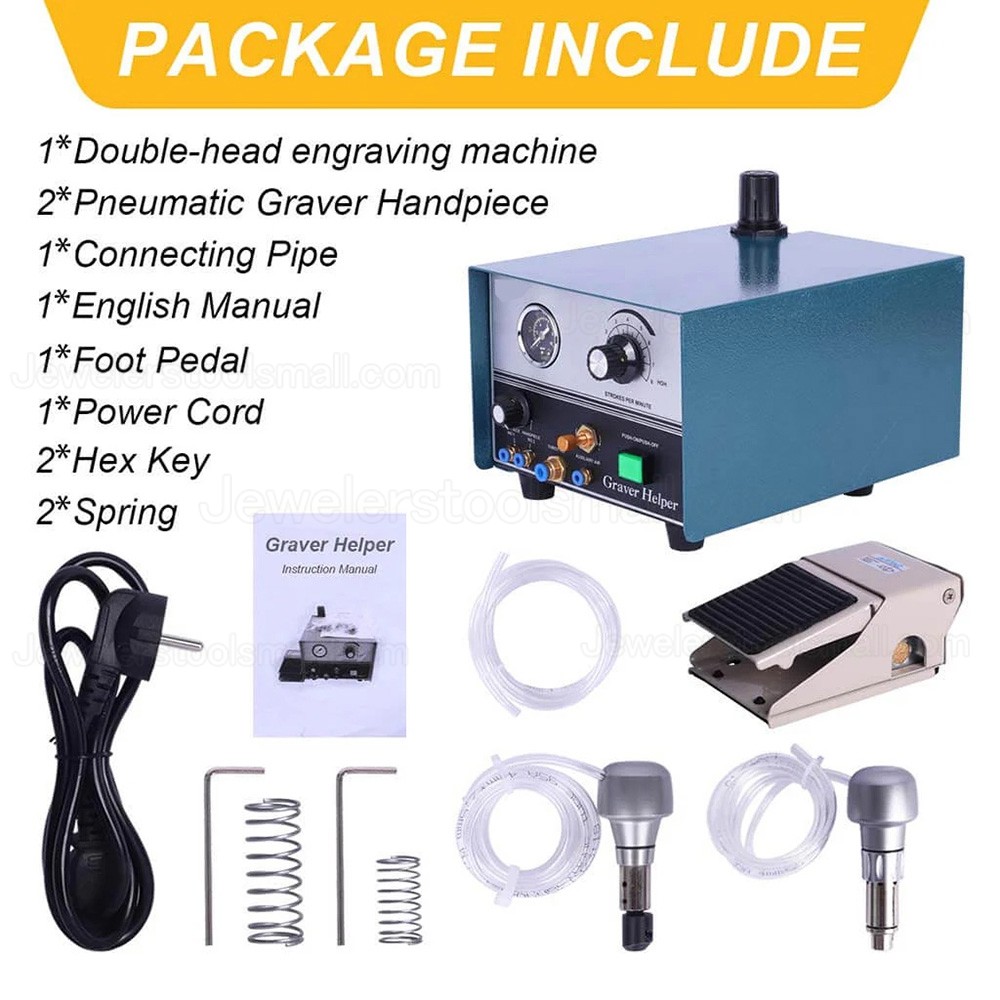

Accessories: 2 pieces Handpieces, 1 piece Foot Control, Cables, 1 piece pipe.
Installation:
1. Size carved handle Foot opening panel interface connector.

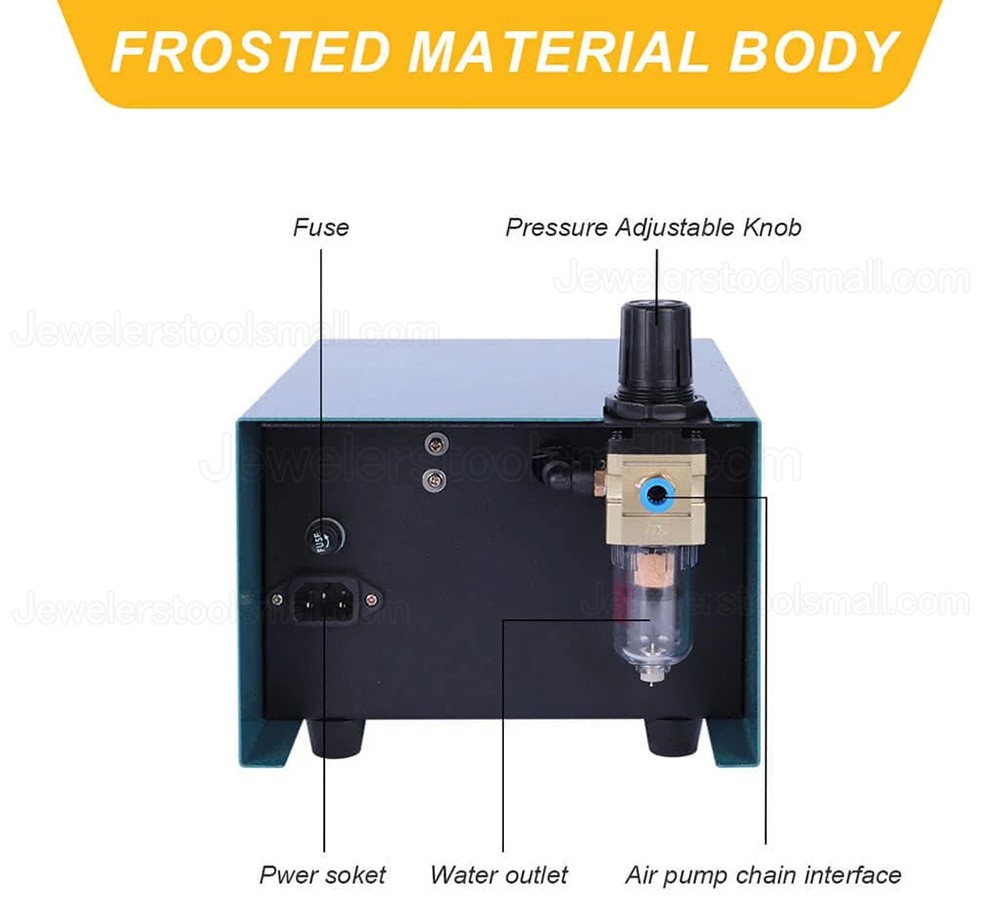

2. The air compressor trachea insert air intake on the back of the engraving machine, it is recommended that the installation of relief valves and water separation filter, air compressor and engraving machine pipeline to increase machine performance.
Methods of operation:
1: The first pressure adjustment knob and rotate the handle switch shut down to avoid the pressure too great damage to the pressure in the table and the pressure relief valve
2: power, turn on the power switch (Light).
3: the position of the changeover switch is set to 1 or 2
4: adjust the air pressure and speed, hand carved handle by stepping foot switch to adjust the pressure knob slowly Pressure gauge indicates of 1.5 ~ 2KG / CM2, adjust the speed knob at the same time, the combination of the two regulation carving handle. the biggest impact, pressure adjustment knob is pressed.
5 the relaxing foot switch, carving the handle to stop working, as shown below loaded tool!
6: size carved handle switch, turn the the conversion handle set and 2 and 1osition (should go to bits)
7 rotary engraving handle work, turn off the power switch, open the rotating handle switch, adjust the pressure knob.
8 hours of work with the footswitch opening increases smooth small to large control impact
Maintenance:
1 engraving machine used for a period of time, it should be the back of the machine reducing valve cups drained.
2 to mechanical oil adding an appropriate amount of the 10th size carved handle!
3 If the fault, not blindly demolished, the staff checks and maintenance.
