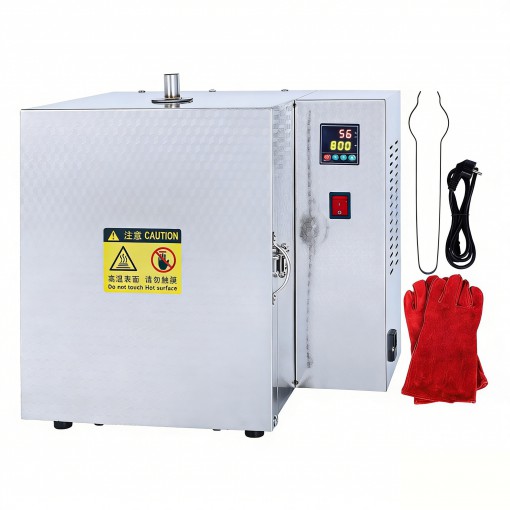

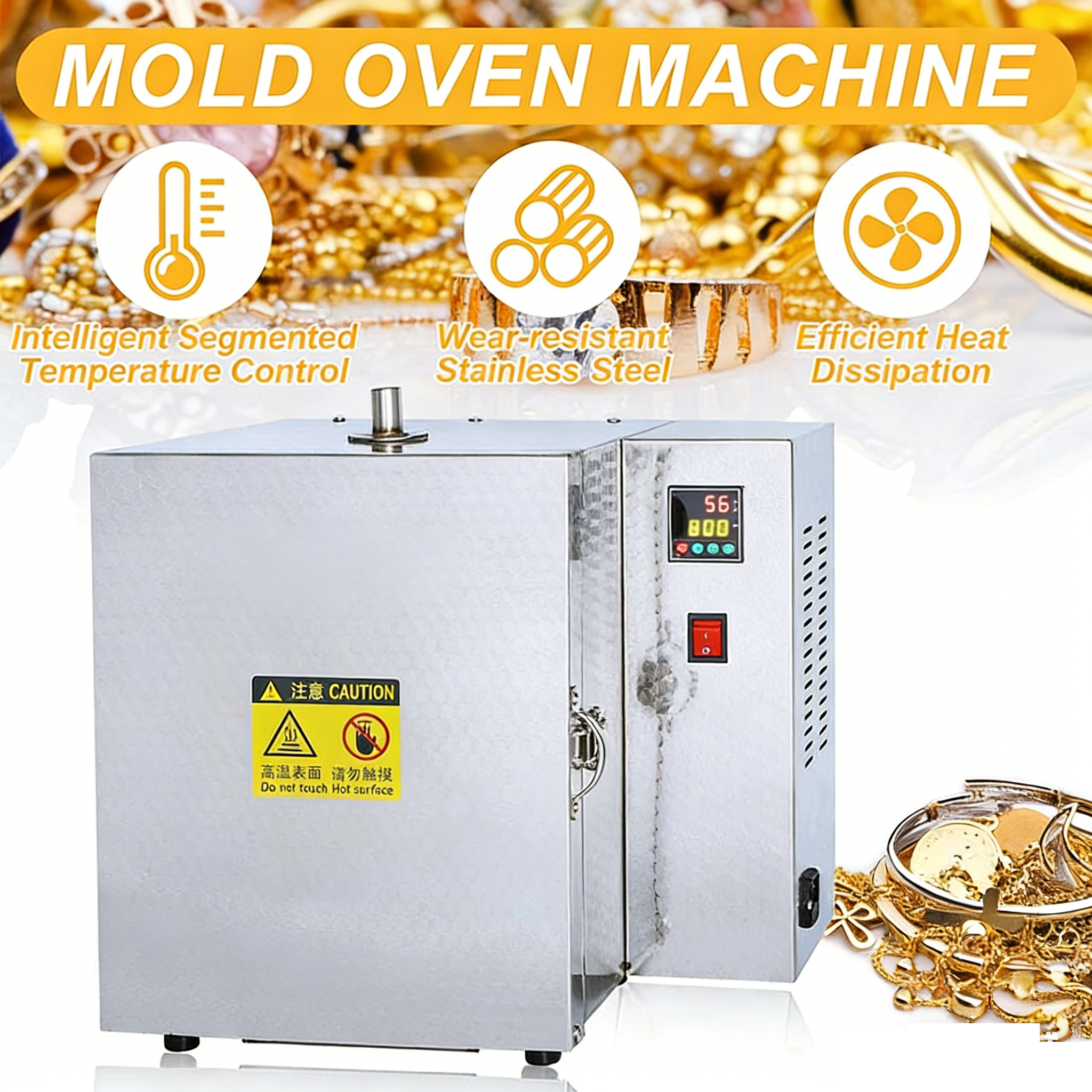

Segmented Temperature Controlled Jewelry Casting Burnout Furnace

Segmented Temperature Controlled Jewelry Casting Burnout Furnace

Features：

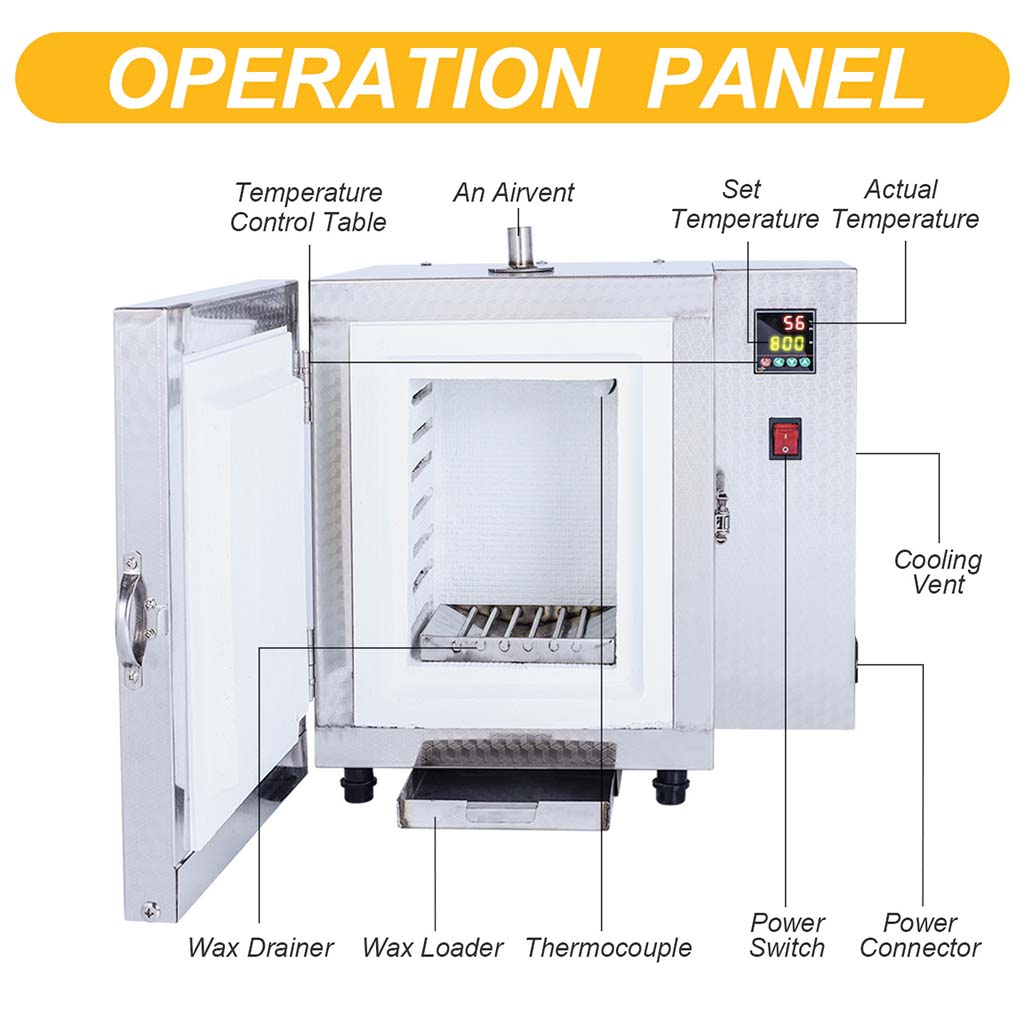

PID digital temperature control
5-stage heating program

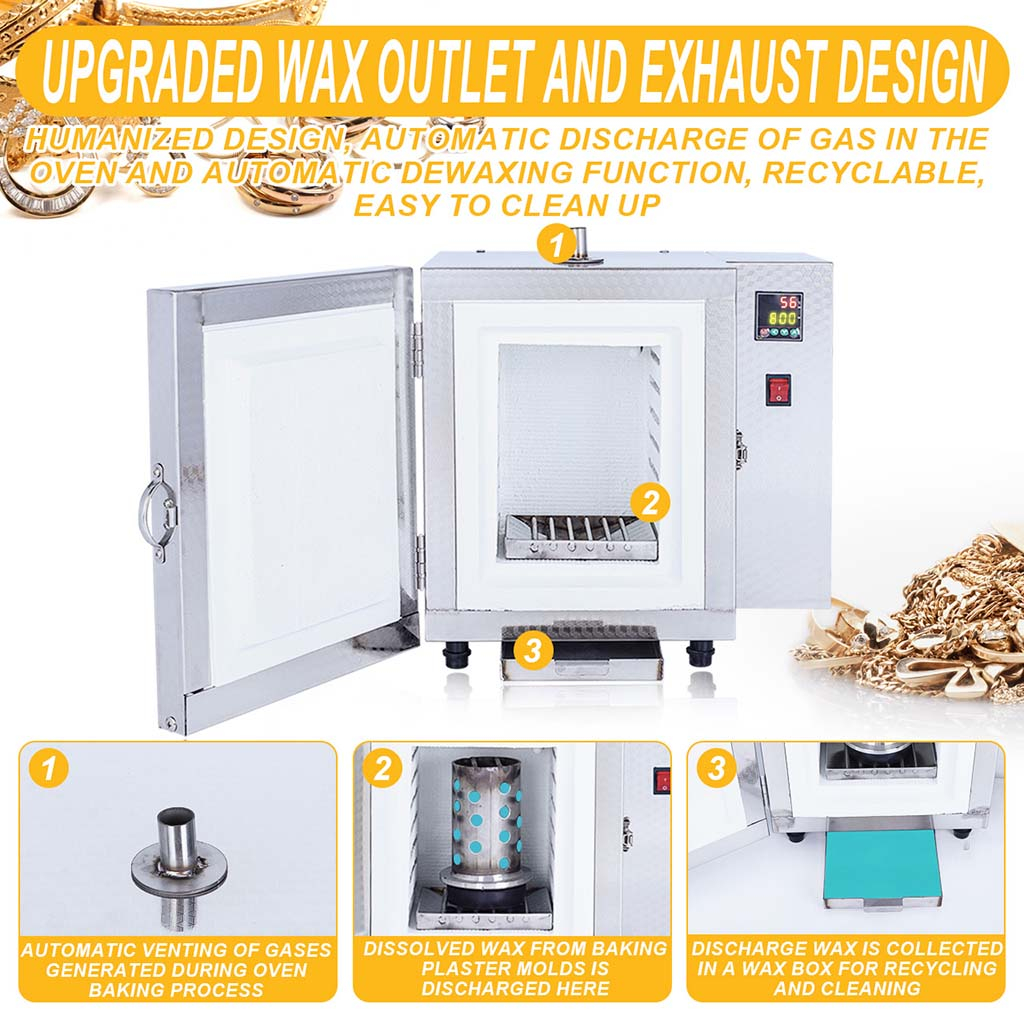

Wax vent and wax collection tray

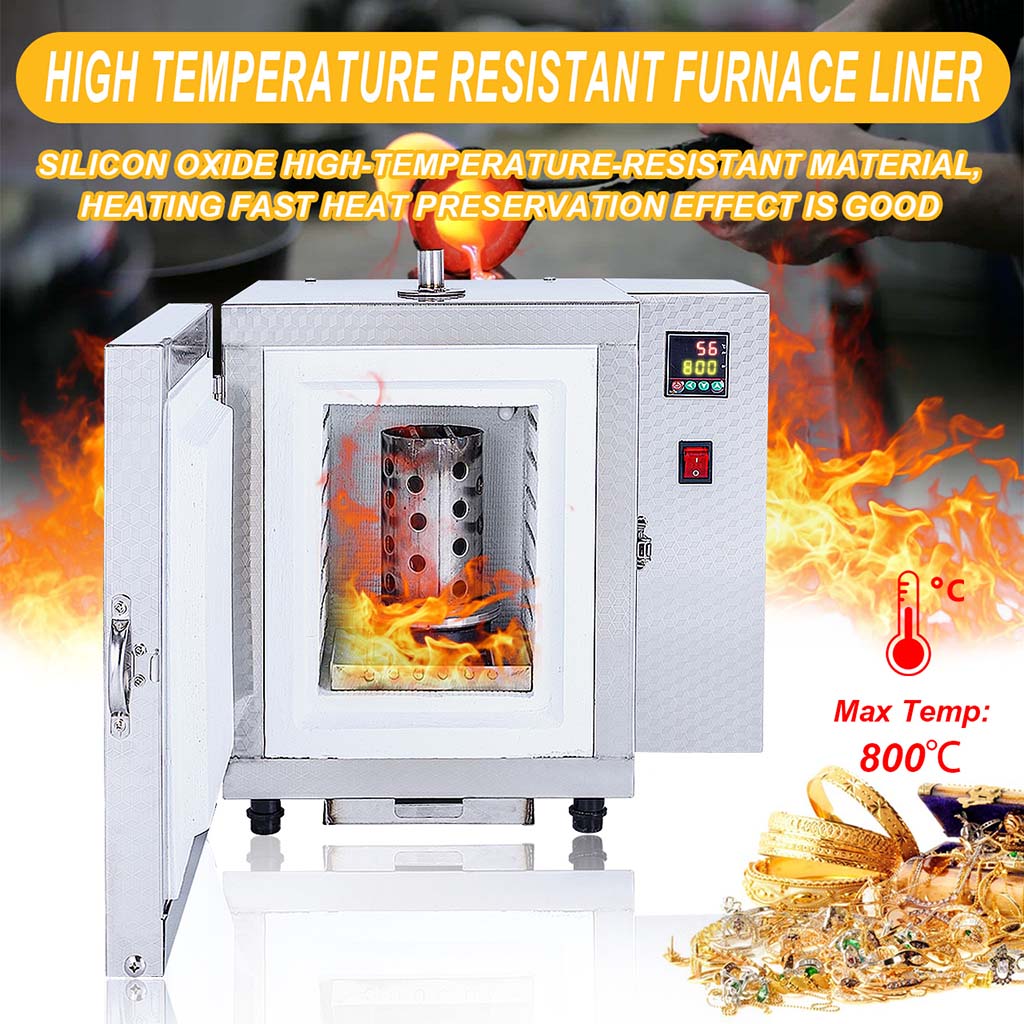

Silicon oxide furnace lining
Resistance wire heating

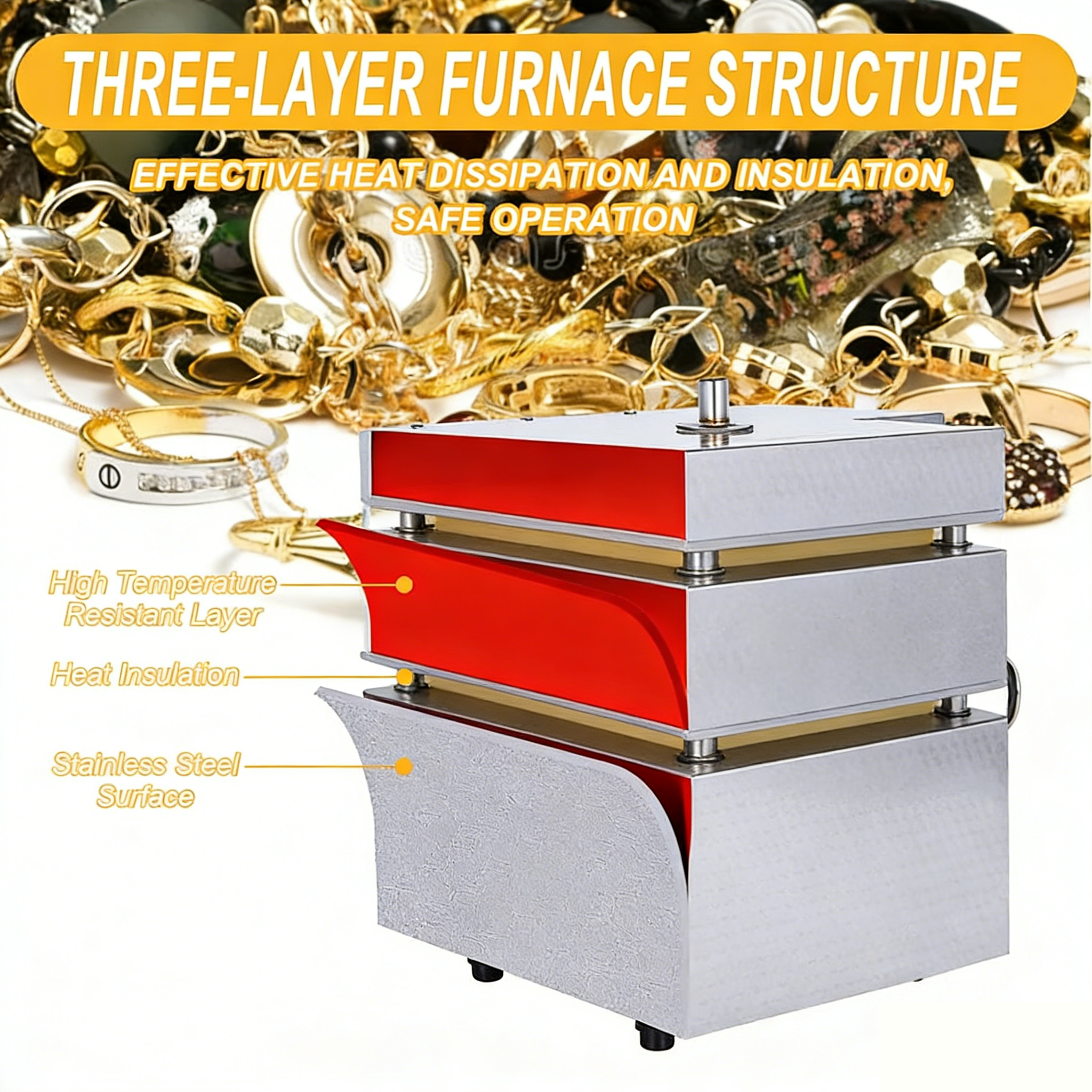

Three-layer furnace structure;

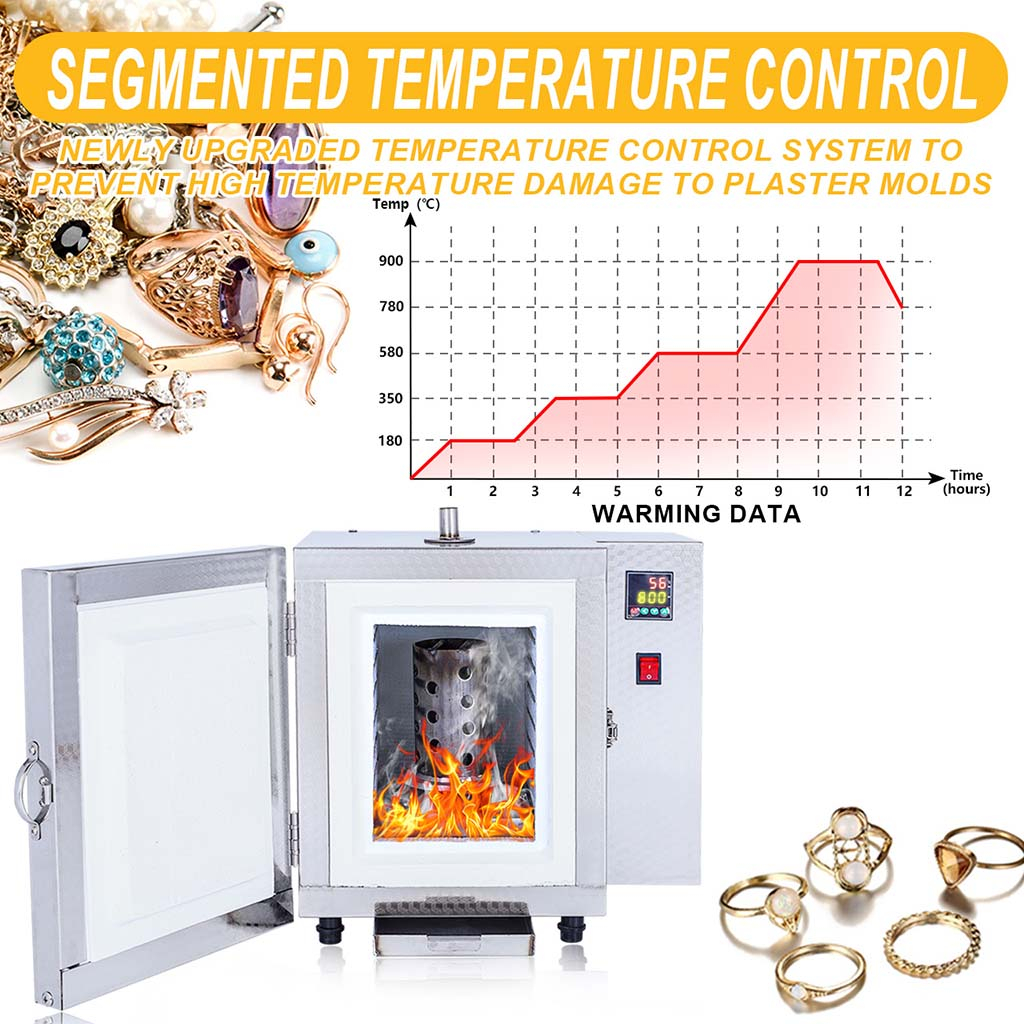

Heating Program:
Stage 1: 60 minutes to 180 degrees, hold for 90 minutes.
Stage 2: 60 minutes to 350 degrees, hold for 90 minutes.
Stage 3: 60 minutes to 580 degrees, hold for 120 minutes.
Stage 4: 60 minutes to 900 degrees, hold for 120 minutes.
Stage 5: 30 minutes to cool down to 780 degrees, ready for inverted mold casting.

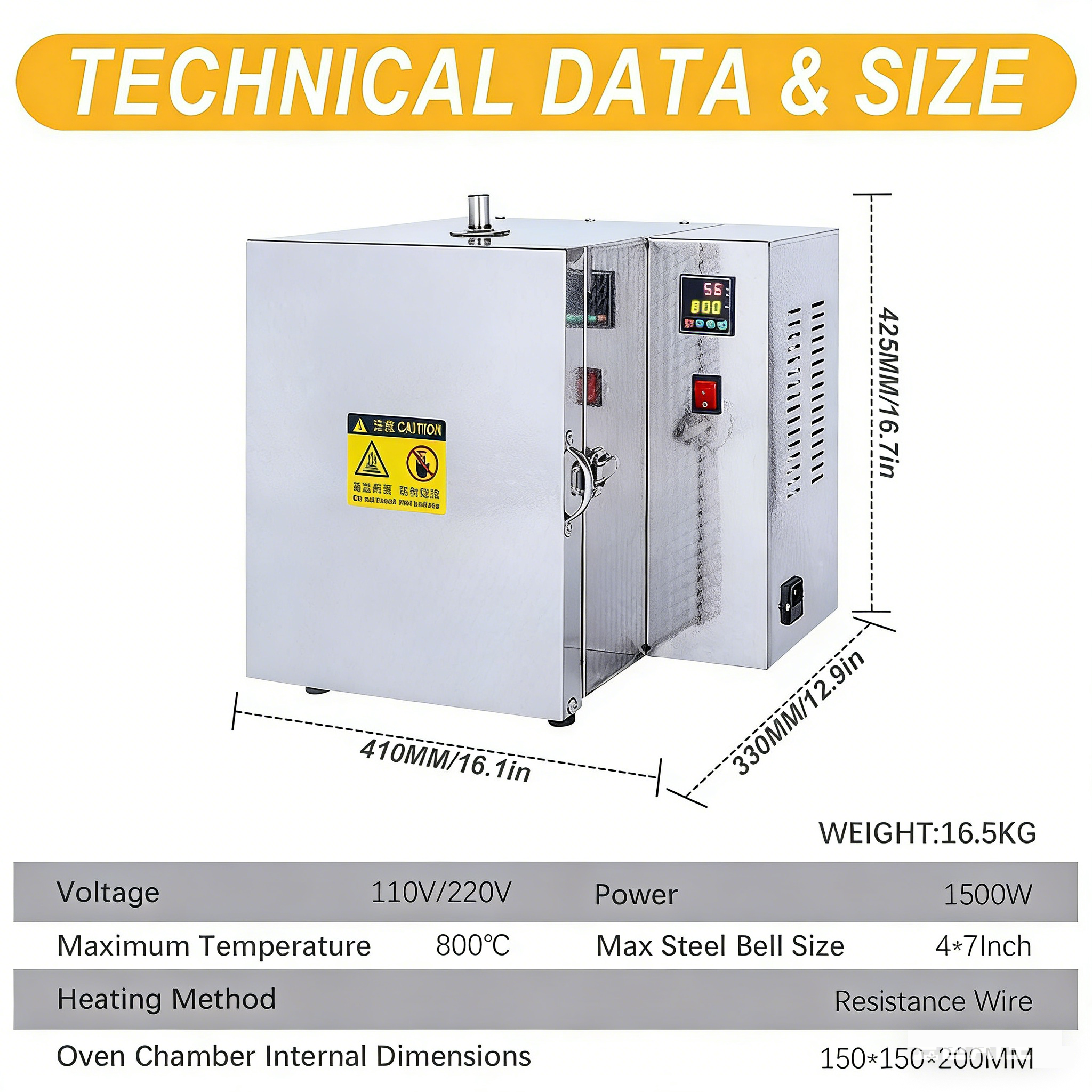

Specifications:
Voltage: 110V/220V
Frequency: 60/50 Hz
Power:1500W
Maximum temperature: 800°C
Max steel bell size: 4 × 7 inches
Heating method: resistance wire
Chamber internal dimensions: 150 × 150 × 200 mm
Product dimensions: 410 × 330 × 425 mm
Weight: approx.16.5kg


Packing List

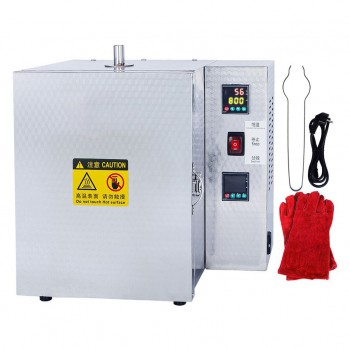

1 × Burnout furnace
1 × Steel bell pliers
1 × Power cable
1 × Gloves
