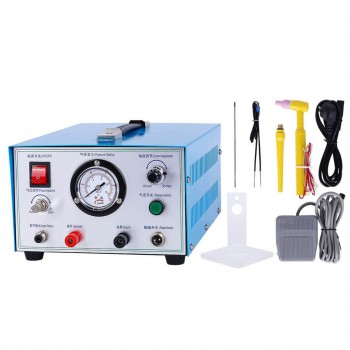

400W 50A Jewelry Spot Welder Sparkle Argon Pulse Welding Machine

400W 50A Jewelry Spot Welder Sparkle Argon Pulse Welding Machine


Description
Jewelry spot welder using plasma high frequency discharge. Forms a molten pool at the metal welding joint. Includes coarse and fine adjustment knobs for output power. Visual barometer displays pressure. Argon protection connection available for oxidizable alloys. Thickened sheet metal shell with cooling holes.

Features
Welding method: plasma high frequency discharge

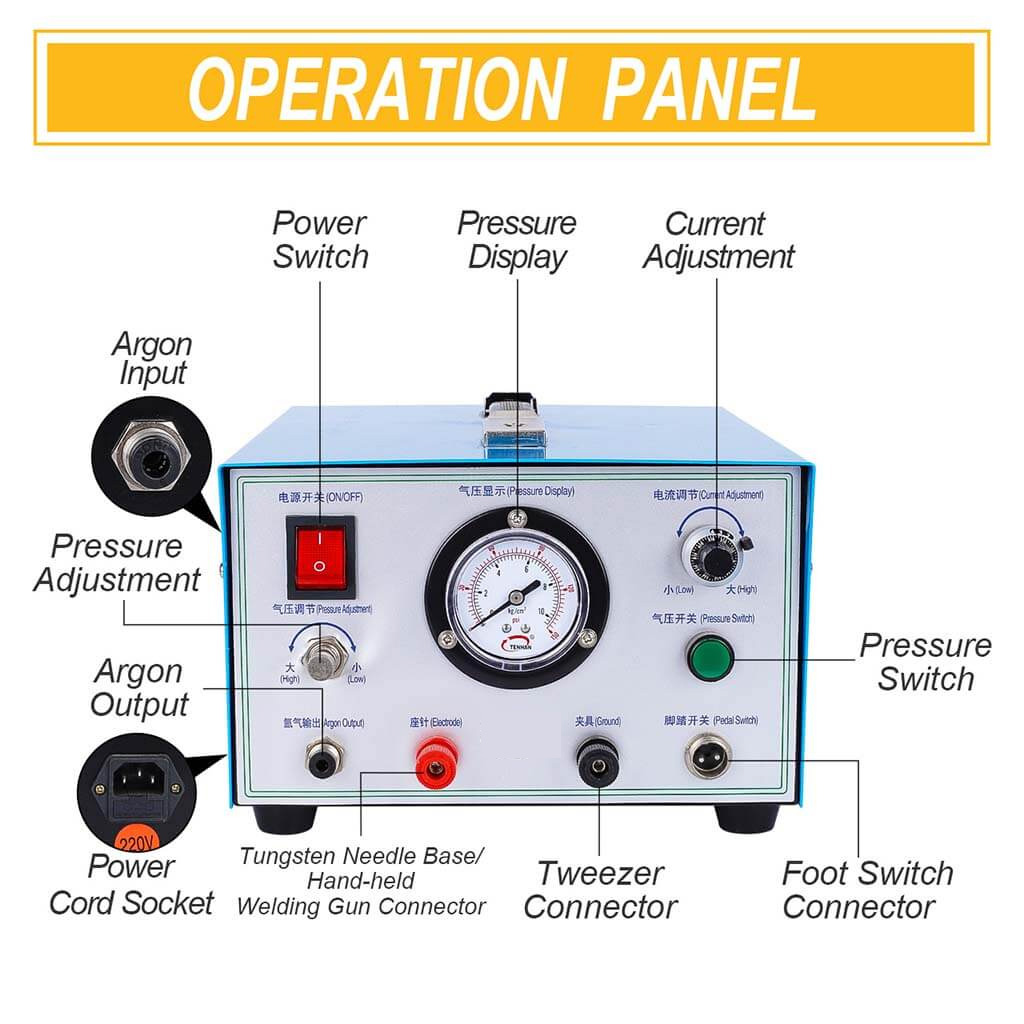

Power adjustment: coarse and fine knobs

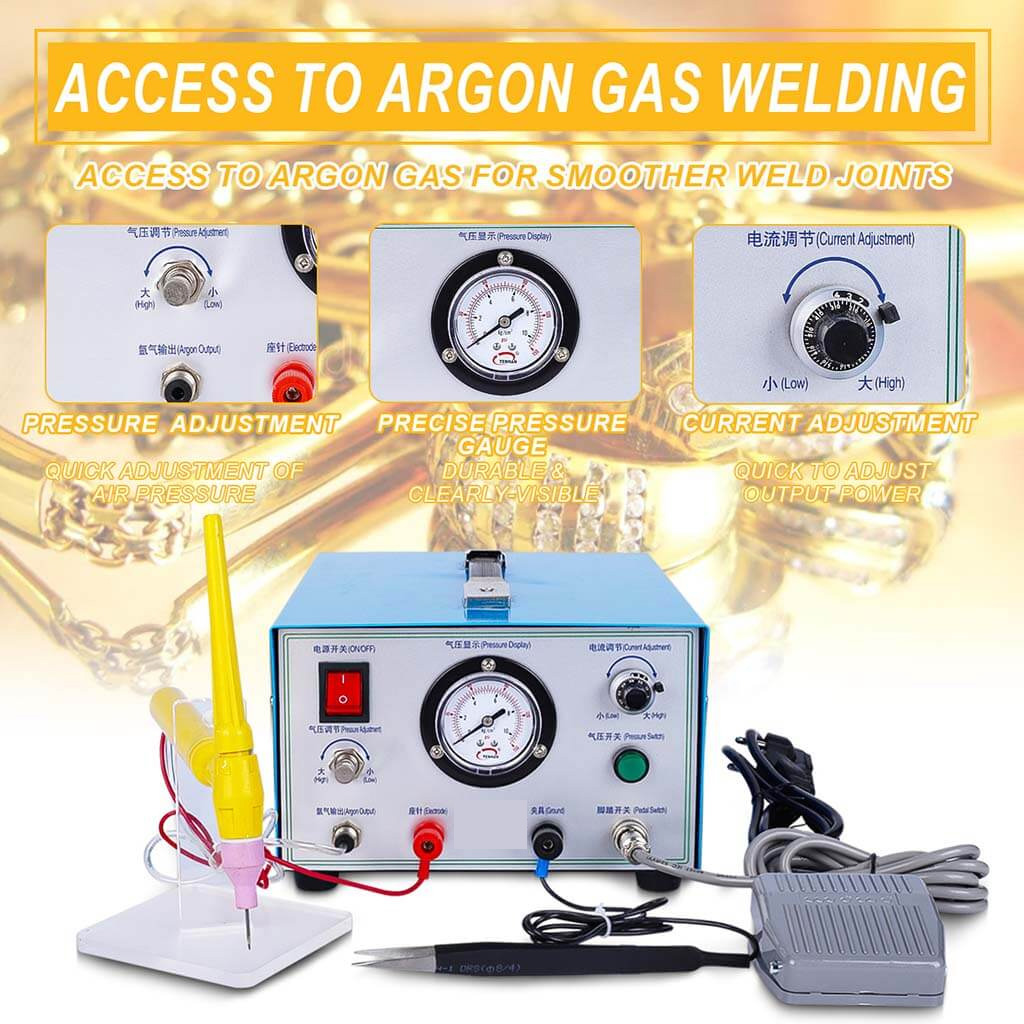

Gas protection: argon connection with visual barometer
Shell: thickened sheet metal with cooling holes
Materials: platinum, gold, karat gold, silver, copper

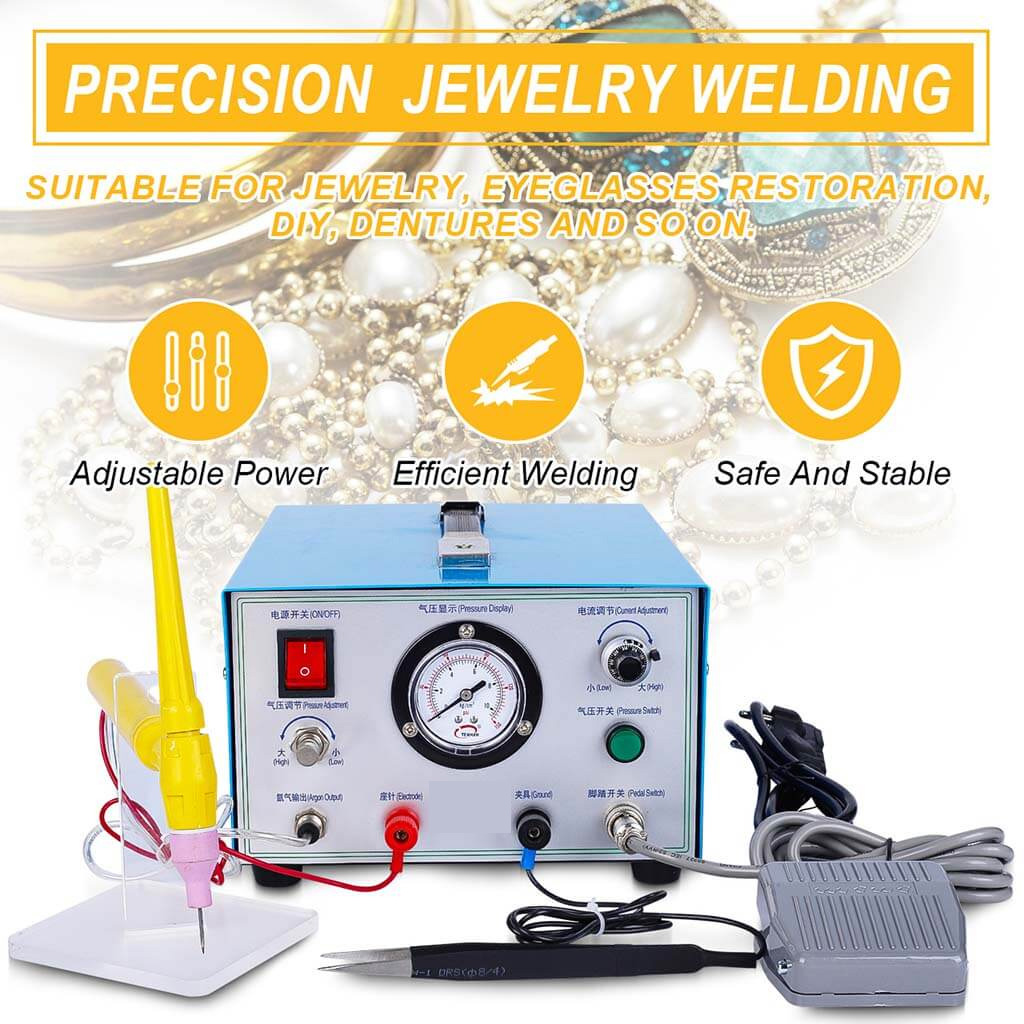

Applications: ring clasps, glass repair, tin toys, handicrafts, dentures, metal wire.

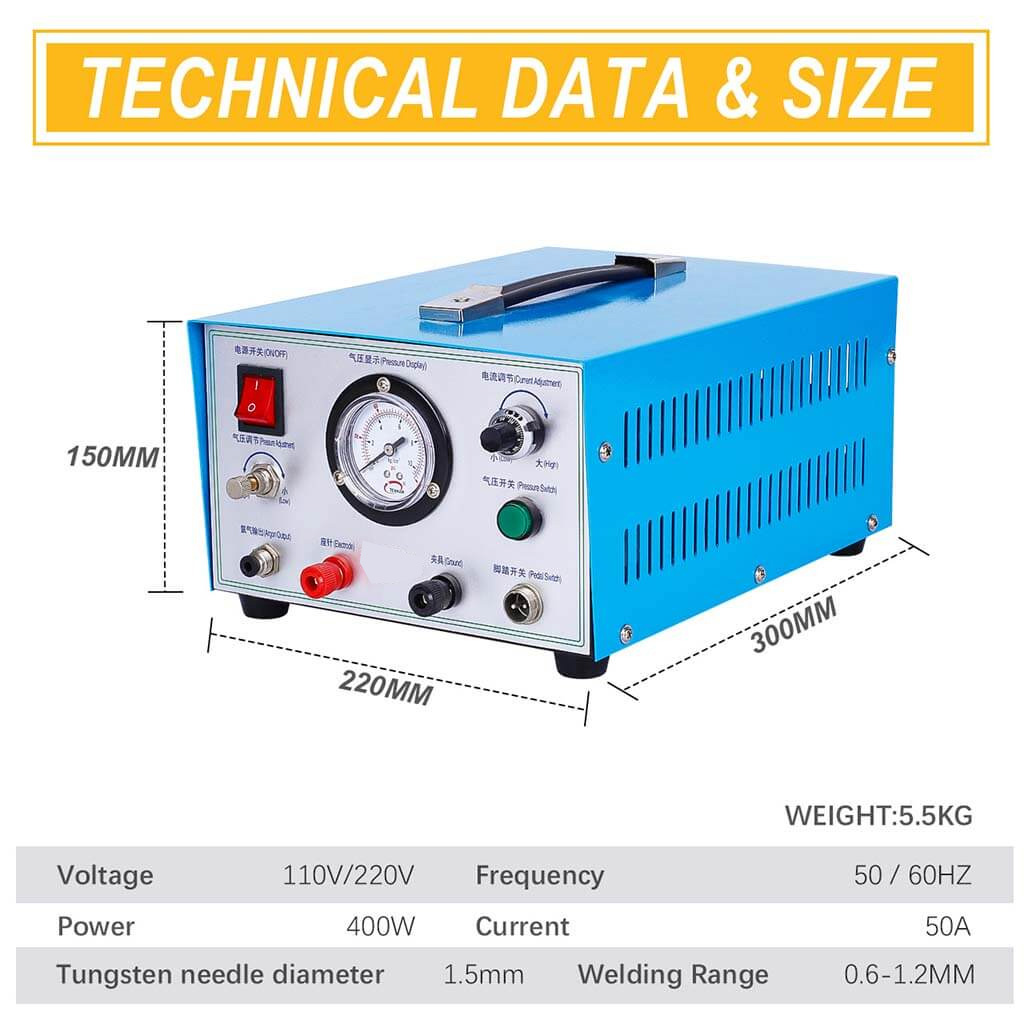

Specifications
Voltage: 110V / 220V
Frequency: 50 / 60 Hz
Power: 400W
Current: 50A
Tungsten needle diameter: 1.5 mm
Welding range: 0.6 to 1.2 mm
Size: 220 × 300 × 150 mm
Weight:5.8kg

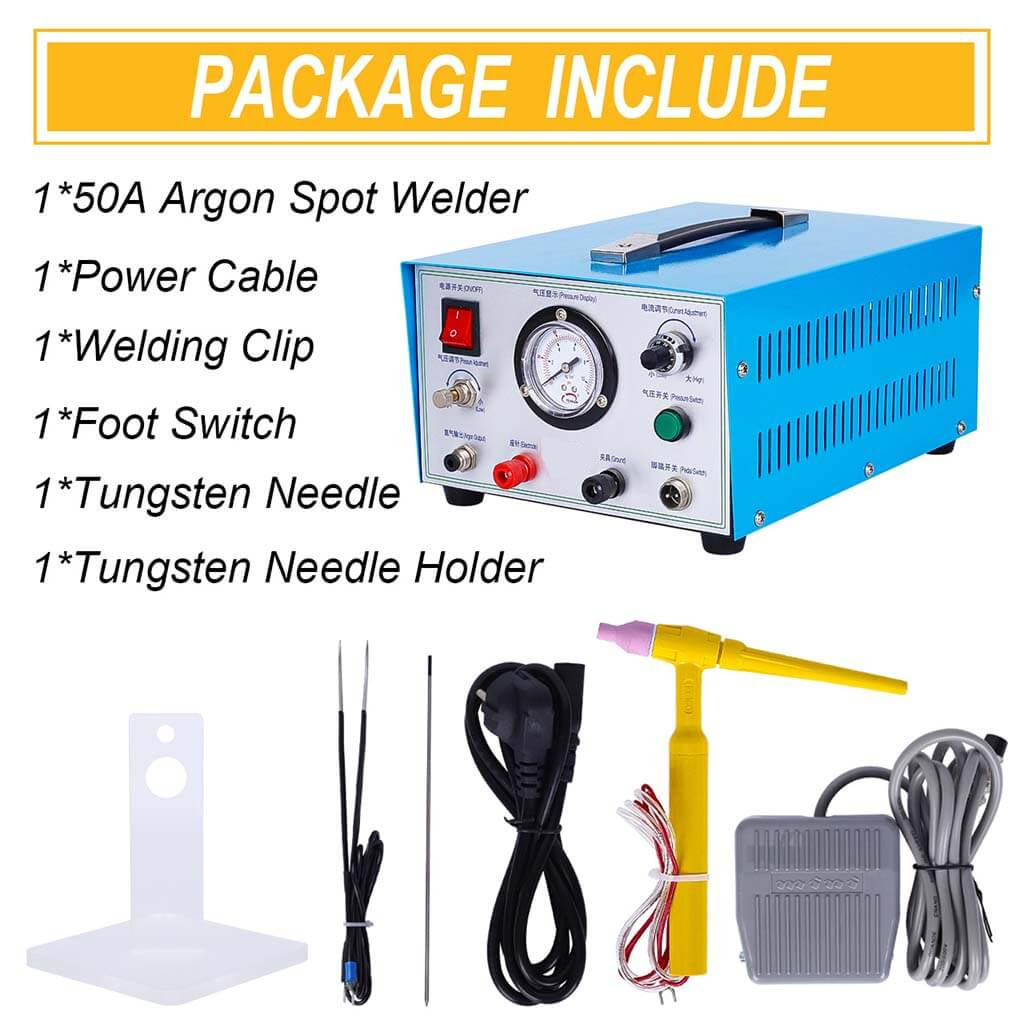

Package Includes
1 × 50A blue argon pulse jewelry spot welder
1 × Foot switch
1 × Power cable
1 × Welding clip
1 × Tungsten needle
1 × Tungsten needle holder

Note:
Argon gas not included.
