1KG Induction Smelting Furnace to Smelt Platinum Gold, Silver Jewelry Making Machine
1KG Induction Smelting Furnace to Smelt Platinum Gold, Silver Jewelry Making Machine
The machine can reach a smelting temperature of up to 2100°C and is capable of smelting various metals, including Platinum, Palladium, Stainless Steel, Gold, Silver, Copper, and Alloys, with a focus on Platinum and Palladium.
Specifications:
Voltage: 110V/220V
Frequency: 50/60Hz
Power: 0-5 KW
Gold Capacity: 1 KG (for Platinum Melting Furnace)
Melting Time: 1-2 minutes (for Platinum Melting Furnace)
Maximum Temperature: 2100°C

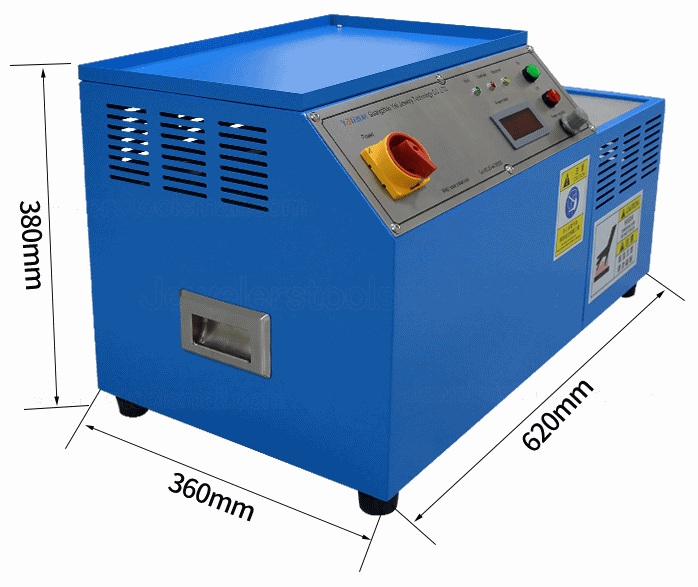

Dimensions: 620 x 360 x 380 mm
Net Weight (including pump): 38.2 kg
Gross Weight (including pump): 57 kg
Warranty: 1 Year (for Platinum Melting Furnace)
The full set includes:
Hose Clamp (4 pcs)
Instruction Manual
Warranty Card
Crucible Tong
Water Inlet & Outlet Pipe
Graphite Crucible, Ceramic Crucible, and Cup;
Attention:
This furnace is suitable for melting metals with a melting point below 1400°C, such as gold, silver, and copper. For metals with a melting point above 1400°C, the use of this furnace is not recommended. High melting point metals should be melted using a ceramic cup. When using a ceramic cup, metal induction is required for heating. It is recommended to place a sufficient amount of metal powder in the crucible—approximately 70% of the crucible's capacity—and compact it with a ceramic rod for a gradual melt.
