Introduction:

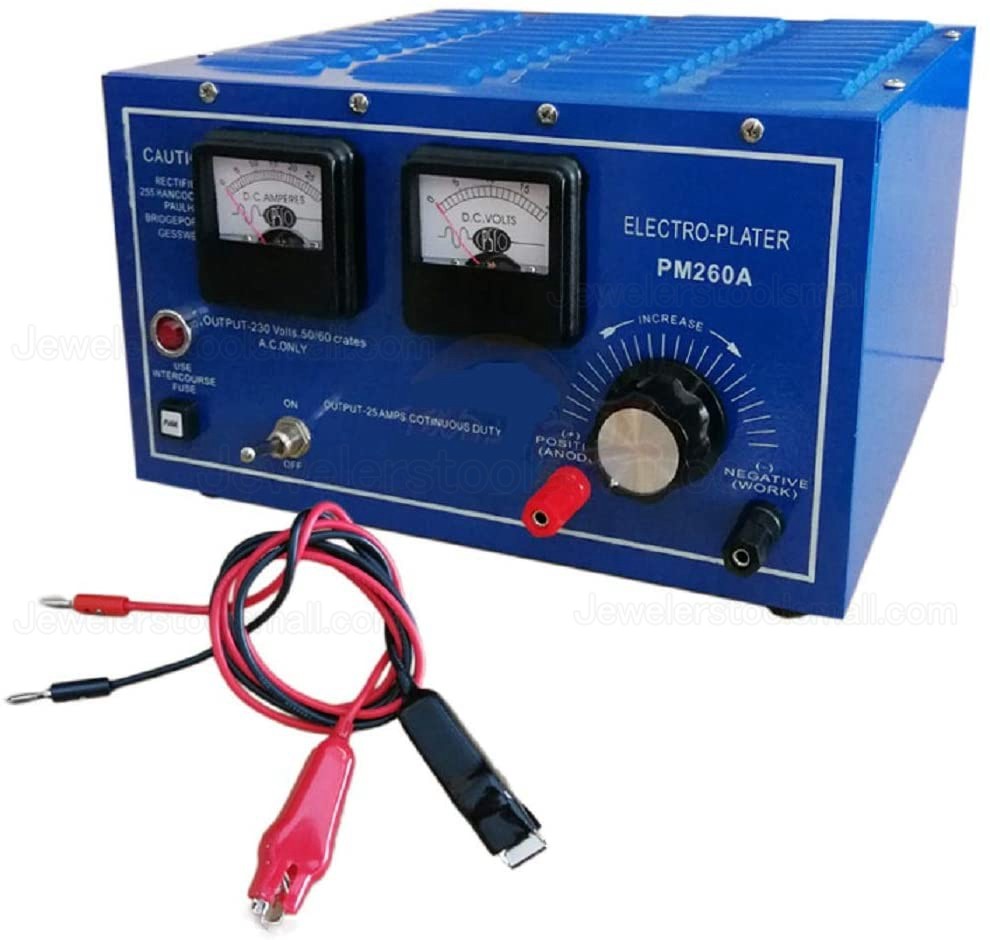

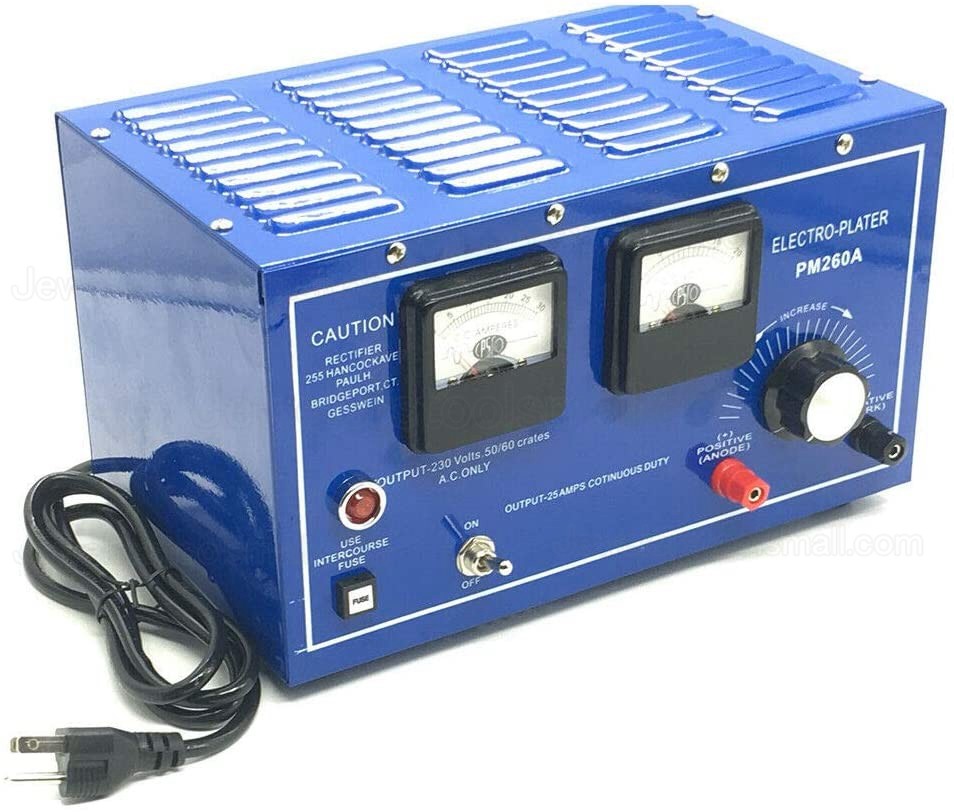

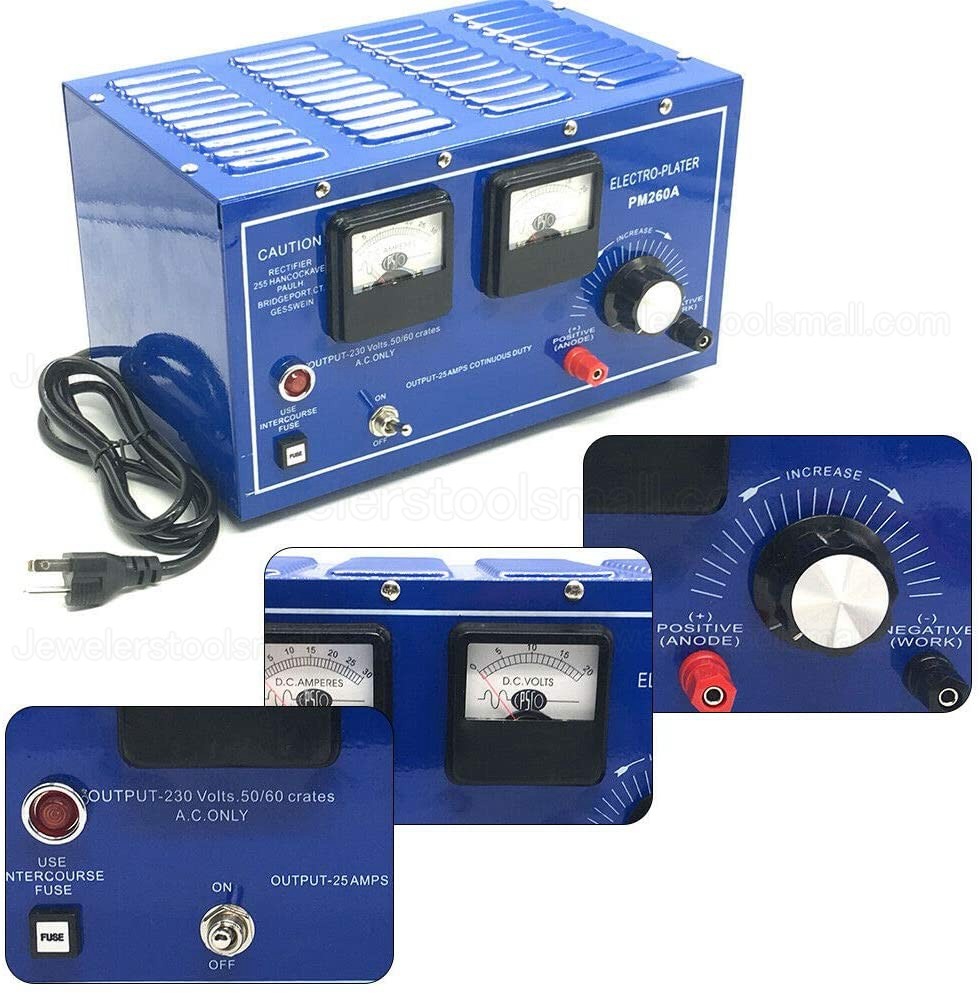

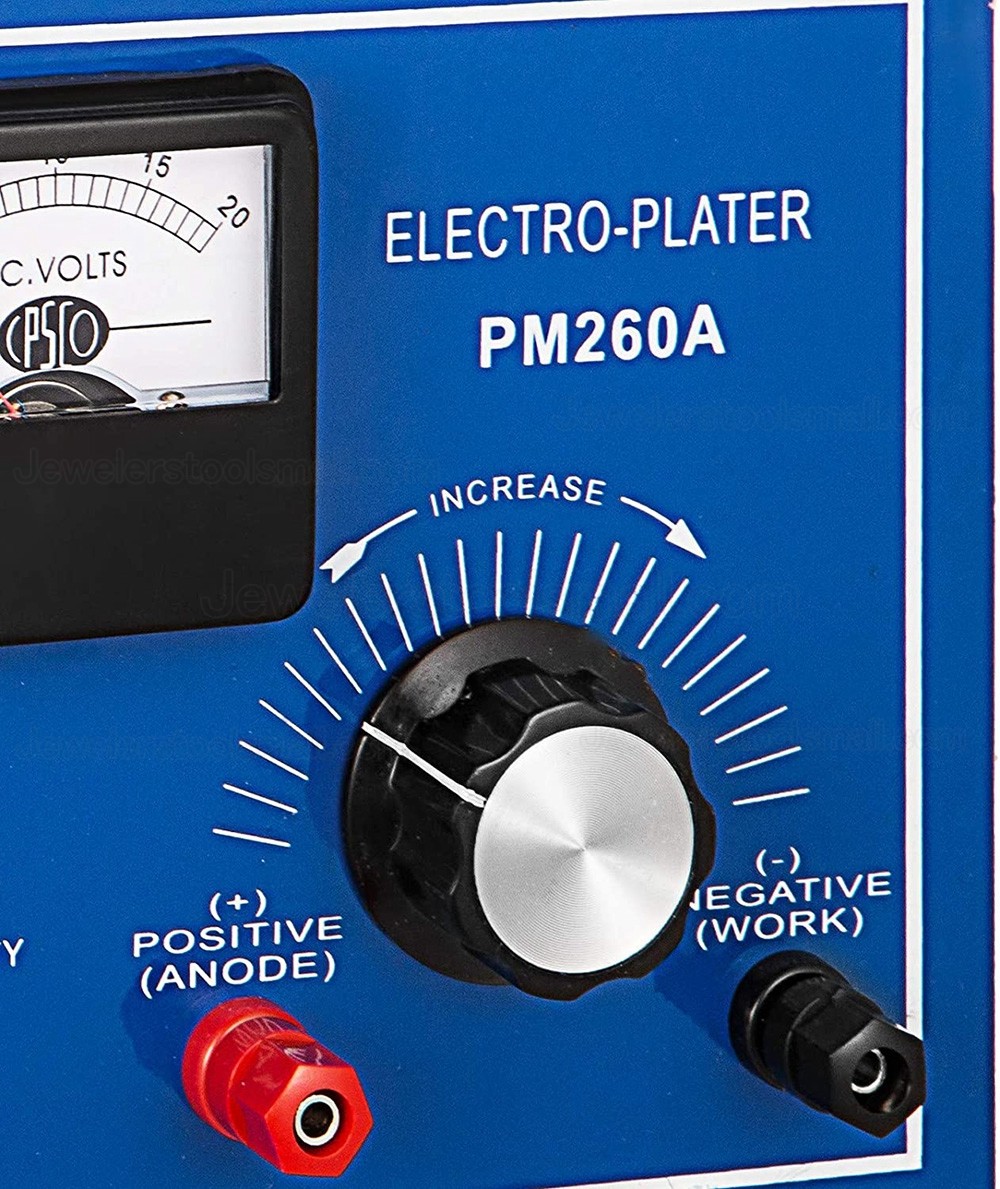

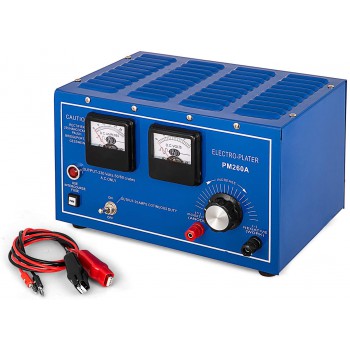

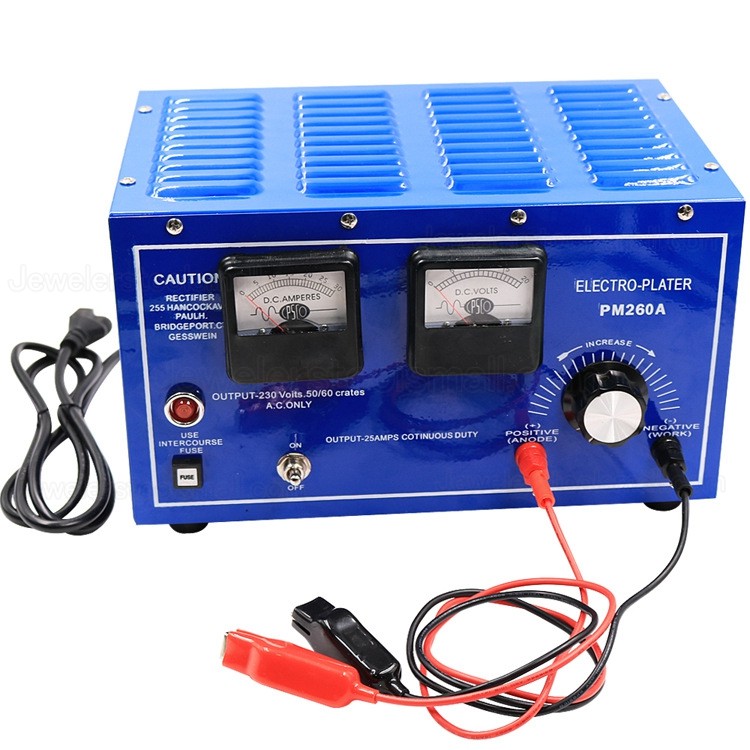

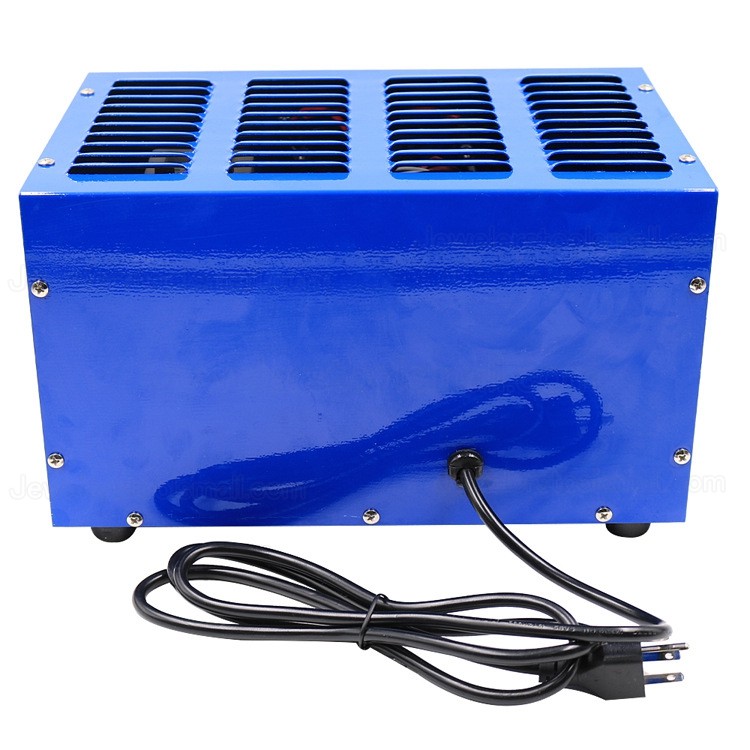

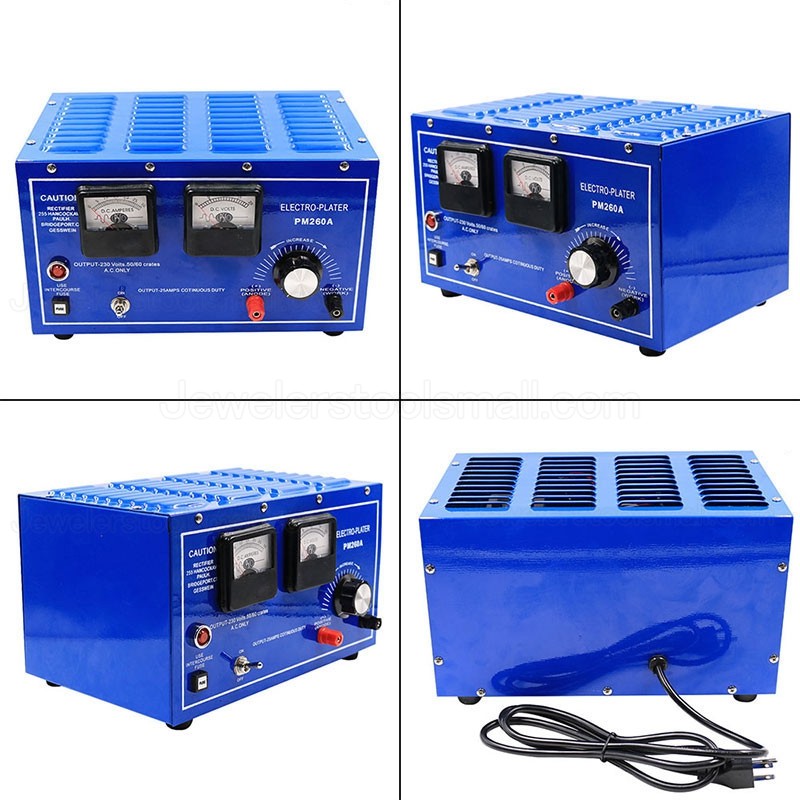

The listing is about 30A platinum silver gold plating machine jewelry plater electroplating rectifier. With thyristor rectifier, automatic voltage regulation, steady current, over voltage, over current protection and undervoltage, phase loss protection. Small size and light weight, but the jewelry plater electroplating rectifier has high efficiency.

Wide Application:The jewelry plater electroplating rectifiers are ideal for today's surface treatments. They have obvious effects on various plating types (plating copper, nickel, chromium, gold, silver, electrophoresis, etc.).


Features：
30A platinum silver gold plating machine
Jewelry plater electroplating rectifier
With thyristor rectifier
Automatic voltage regulation and steady current
Over voltage and over current protection
Undervoltage and phase loss protection.
The film is smooth and uniform
With less plating time
Ideal for today's surface treatments;

Description:

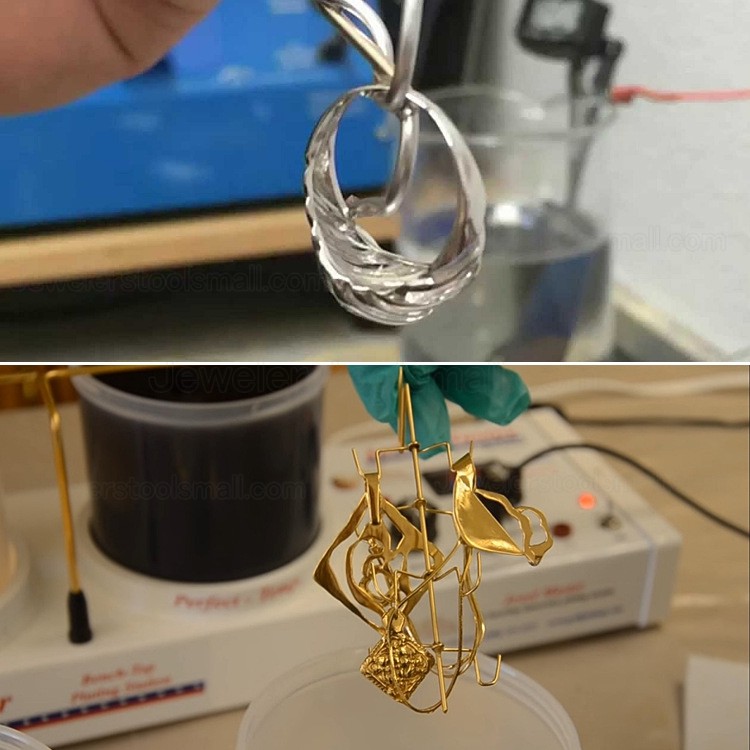

Gold plating (14K, 18K, 24K):
- Anode (+): clamp titanium mesh
- Cathode (-): clamp jewelry
- Temperature: 70 – 80 ℃
- Plating time: 20 – 50 seconds (based on plating 1 – 4 piece rings)

Silver plating:
- Anode (+): clamp titanium mesh
- Cathode (-): clamp jewelry
- Voltage: 5 volts
- Temperature: 40℃
- Plating time: 3 – 5 second

Platinum plating:
- Anode (+): clamp titanium mesh
- Cathode (-): clamp jewelry

Adjustable range of voltage: 3 – 4 volts
- Temperature: 30 – 40℃
- Plating time: 90 – 120 seconds (based on plating 3 – 5 piece rings)


Technical Parameters：
Rated voltage: 220V / 110V
Max. current: 30 A
Max. adjustable voltage: 20 V
Package size: 43 x 39 x 37 cm (16.93 x 15.36 x 14.57 inch)
Gross weight: 11.65 kg (25.68 lbs)；


Package List:
1 x Plating Machine
1 x Connection Cable
1 x User Manual
