Manual Jewelry Rolling Mill Machine 4.4"/112mm Combination Rolling Mill for Jewelry Sheet Square Semicircle Circle Pattern

Manual Jewelry Rolling Mill Machine 4.4"/112mm Combination Rolling Mill for Jewelry Sheet Square Semicircle Circle Pattern

NO.:JWSM001340
4 3 reviews | Write a review
Latest price:$321.00
Buy It Now:$214.00
Bulk Price:
Qty.Range(unit) Price(unit) Discount
2 $210.00 2%
5 $204.00 5%
10 $193.00 10%
Qty: -+
Ask a question / Report error / Request bulk price

Manual Jewelry Rolling Mill Machine 4.4"/112mm Combination Rolling Mill for Jewelry Sheet Square Semicircle Circle Pattern



Features:
112 mm Manual Rolling Mill
The combination mill is designed for cold rolling metal to produce thinner gauges of sheet metal and wire, transferring textures to your metal and making the thickness uniform. With adjustable press thickness, reduced gear ratio, and practical accessories, the tool is ideal for jewelers and artisans.

Four-in-one rolling mill:
The rolling mills, with four-in-one performance, can press gold and silver into multiple sizes of sheet, square, semicircle, and circle. Its rollers are also easy to change to satisfy your different requirements, a necessary machine for jewelry processing.

Adjustable press thickness:
The distance between the rollers can be precisely adjusted from 0.1 mm to 7 mm through the T-shape Bar. With a reduced gear ratio of 1:2.5, the roller makes one complete turn for every two and a half turns of the handle, relieving the amount of force needed to operate the wire roller mill.

Durable cast iron & steel:
This jewelry rolling mill machine comes with a cast-iron frame and chrome steel forged rollers for sturdiness and long service life. The blue powdered coating on the surface provides good wearability and corrosion resistance to enable the device to work steadily.

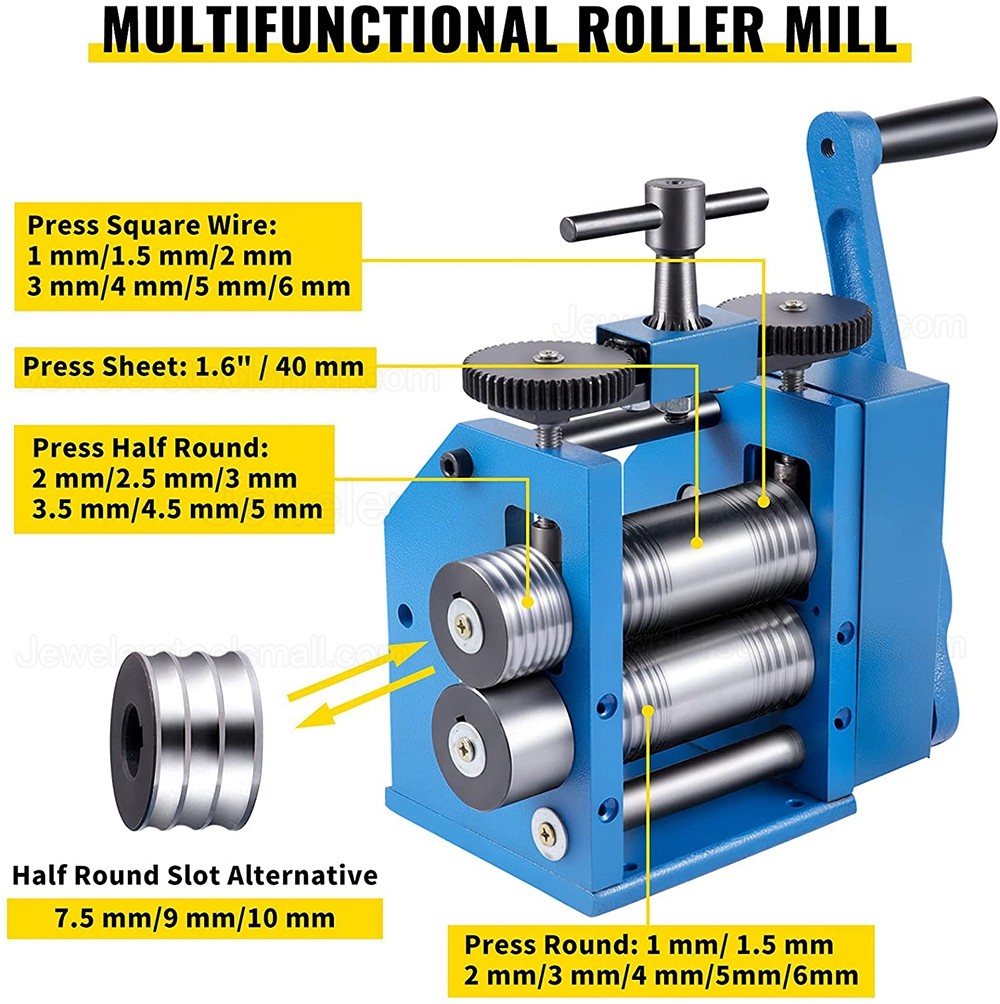

Multifunctional Roller Mill
Four forms of roll slots, half-round, round, square & smooth side, are arranged in decreasing sizes to allow gradual reduction of item diameters. So you can process various thicknesses of sections according to your requirements.

Adjustable Roll Distance
The T-shape bar at the top of the rolling jewelry effectively opens, closes, and adjusts the roller's distance. When you completely close the rollers, you should measure "true" with no visible gaps.



Application:

Our manual rolling mill machine is designed for cold rolling metal to produce thinner gauges of sheet metal and wire, transferring textures to your metal. It is an ideal option for both jewelers and craftspeople to create your handicraft works.


Specifications:

Model: Double-slot Rolling Mill
Gear Ratio: 1:2.5
Press Square: 0.04" / 1 mm; 0.06" / 1.5 mm; 0.08" / 2 mm; 0.12" / 3 mm; 0.16" / 4 mm; 0.2" / 5 mm; 0.24" / 6 mm
Press Smooth Sheet: 1.6" / 40 mm
Press Semicircle: 0.08" / 2 mm; 0.1" / 2.5 mm; 0.12" / 3 mm; 0.14" / 3.5 mm; 0.18" / 4.5 mm; 0.2" / 5 mm; 0.3" / 7.5 mm; 0.35" / 9 mm; 0.4" / 10 mm
Press Circle: 0.04" / 1 mm; 0.06" / 1.5 mm; 0.08" / 2 mm; 0.12" / 3 mm; 0.16" / 4 mm; 0.20" / 5 mm; 0.24" / 6 mm
Min. Press Thickness: 0.004" / 0.1 mm
Max. Press Thickness: 0.28" / 7 mm
Material: Cast Iron & Chrome Steel
Roller Dimension: 4.4" x 1.9" / 112 x 48 mm
Item Dimension: 10.43" x 5.31" x 11.42" / 26.5 x 13.5 x 29 cm
Weight: 38.1 lbs / 17.3 kg


Package Content:
1 x Combination Rolling Mill
1 x Silver Polishing Cloth
1 x Silver Stick for Jewelry
1 x Agate Knife
1 x Plastic Ring Band;

Manual Jewelry Rolling Mill Machine 4.4

Manual Jewelry Rolling Mill Machine 4.4

Manual Jewelry Rolling Mill Machine 4.4

Manual Jewelry Rolling Mill Machine 4.4

Manual Jewelry Rolling Mill Machine 4.4

Manual Jewelry Rolling Mill Machine 4.4

Manual Jewelry Rolling Mill Machine 4.4

Manual Jewelry Rolling Mill Machine 4.4

Manual Jewelry Rolling Mill Machine 4.4

Jewelerstoolsmall.com supplies high-quality jewelry making tools for small and medium jewelers, goldsmiths, jewelry designers, refurbishers, jewellery repairers or hobbyists with fast global shipping and affordable price. If you have any questions or need help, please don't hesitate to contact us.

Prev: Manual Jewelry Marking Rolling Mill Tools for Jewelers Combination Rolling Mill 110mm Wide 65mm Diameter
Next: Jewelry Making Faceting Machine Gem Lapidary Gemstone Grinding Polishing Machine with Led Light & Water Pump

Ella – 17 Aug 2022

Hello, we would like to order this Machine, do you have a Rep in Israel, that we can order from ? (or we can conduct a business directly with you ?)

https://www.jewelerstoolsmall.com/goods-1340.html

Thank you
Ella

Administrator : Dear Customer,

Thanks for your reply.
I have sent an email to you, please check it.
Thanks.

Mr.Renault – 22 Apr 2022

Très bon prix, livré en 48 heures. Seul le carton d'expédition avait souffert mais l'emballage du produit était préservé.

Administrator : hello, friend
thank you so much for your reply
if you have any problem, please contact me
Regards!

Stacey Marie – 11 Feb 2021

If the gears of the product I received are not flat.How can I debug this jewelry rolling mill machine?

Administrator : When you receive this mill you will have to calibrate your rollers.. set up to roll a piece of sheet and then remove the T-handle being careful not to turn either gear.

Roll a piece of sheet through your flat roller... With a set of calipers measure your metal left side and right side. More than likely one will be larger than the other.. make a slight turn to the downward direction on the high side gear and roll again rinse and repeat untill your sheet comes out even on both sides. Carefully replace the T-handle again being careful not to turn the gears, lock it in with the bolt underneath the top cross beam and check your sheet one more time.
